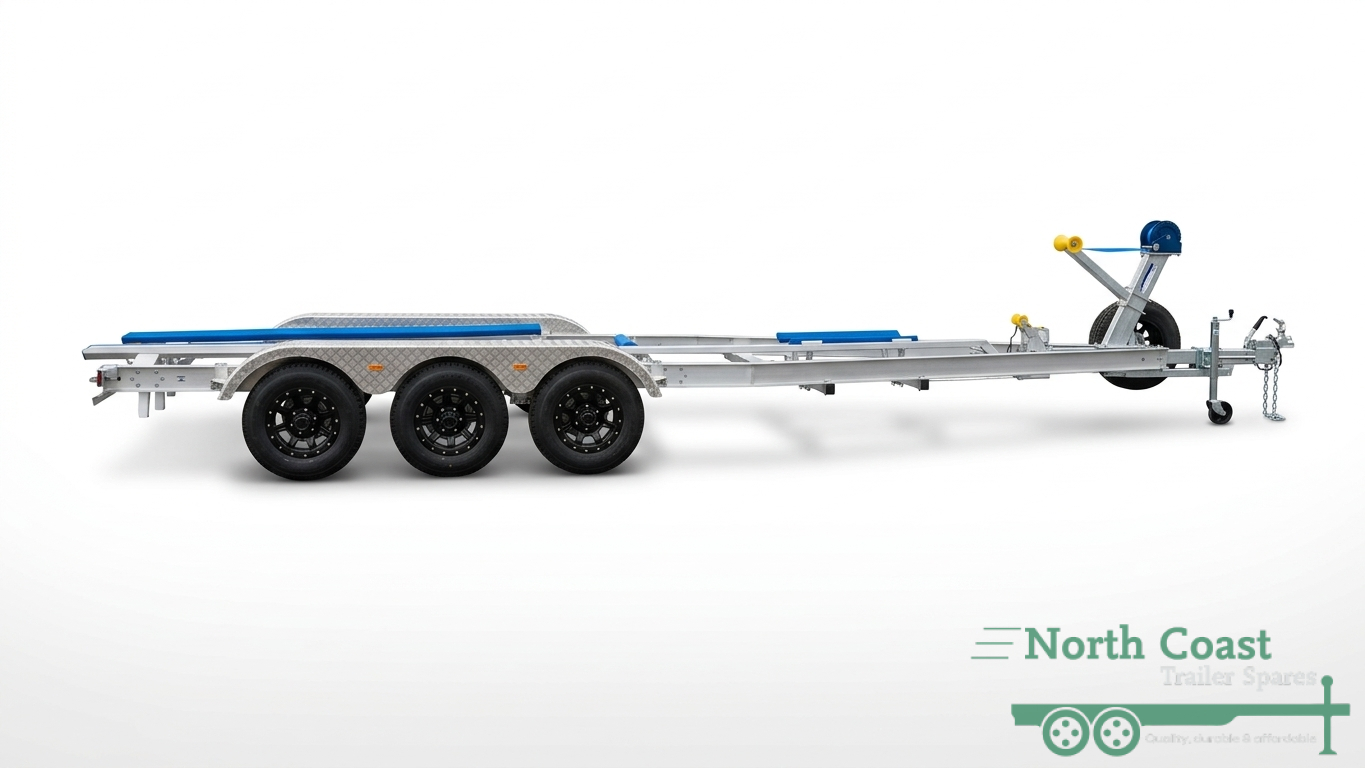

Tri-axle 4500kg aluminium boat trailer model HRAB2830RH7H on a white studio background.

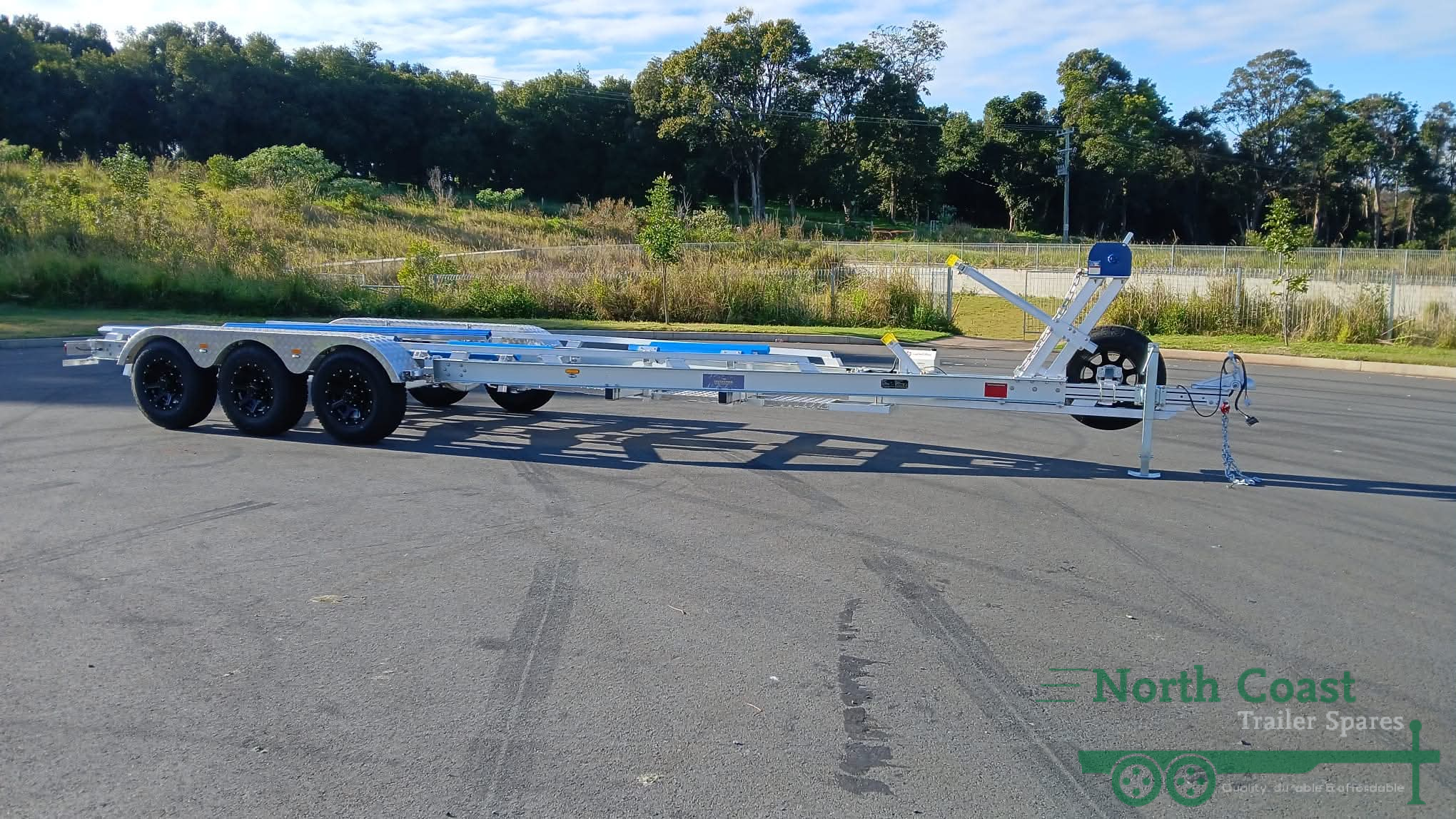

Front three-quarter view of HRAB2830RH7H tri-axle aluminium boat trailer with black alloy wheels.

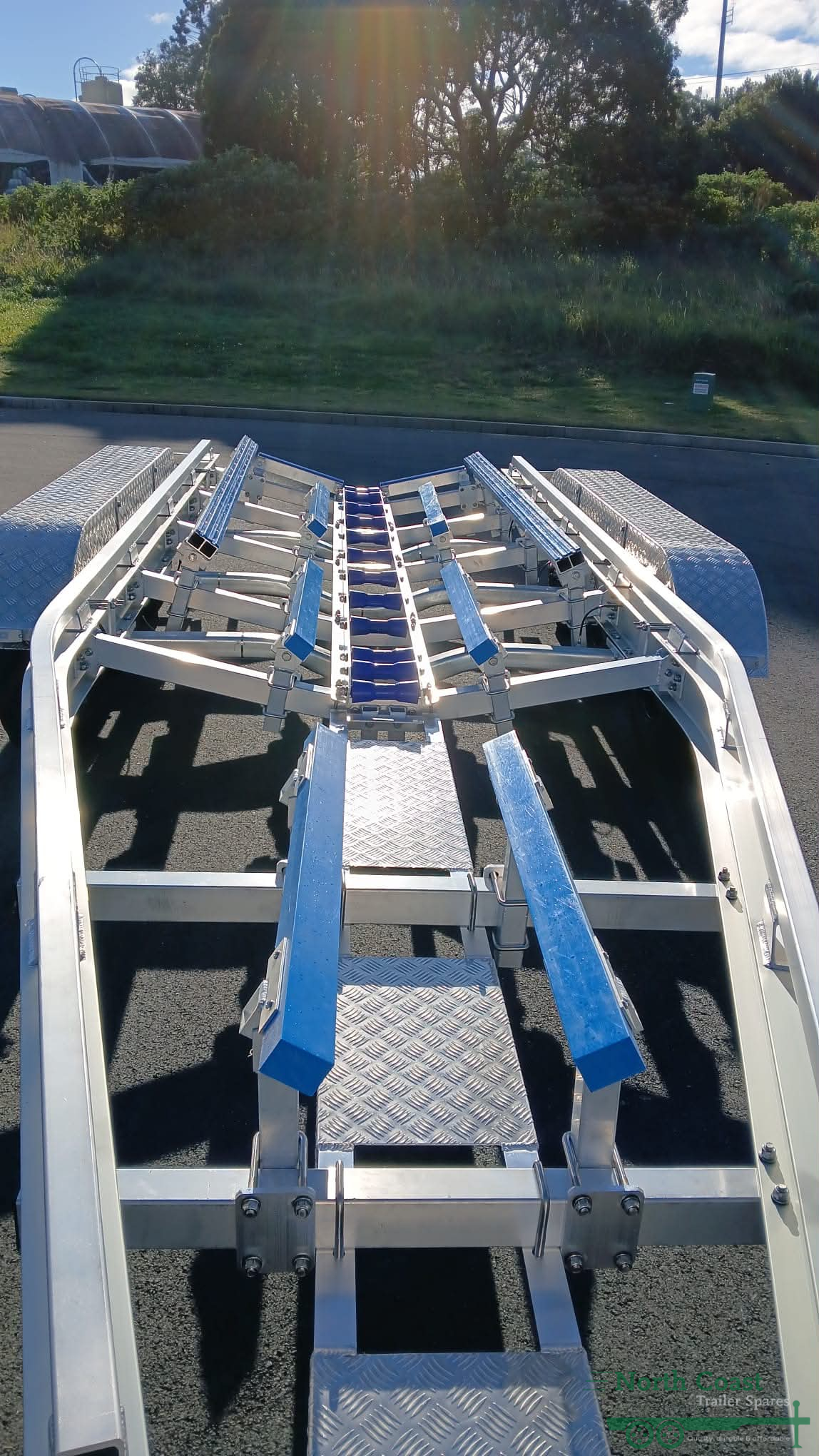

• Overhead view of aluminium boat trailer chassis showing blue poly bunks and centre keel wobble rollers.

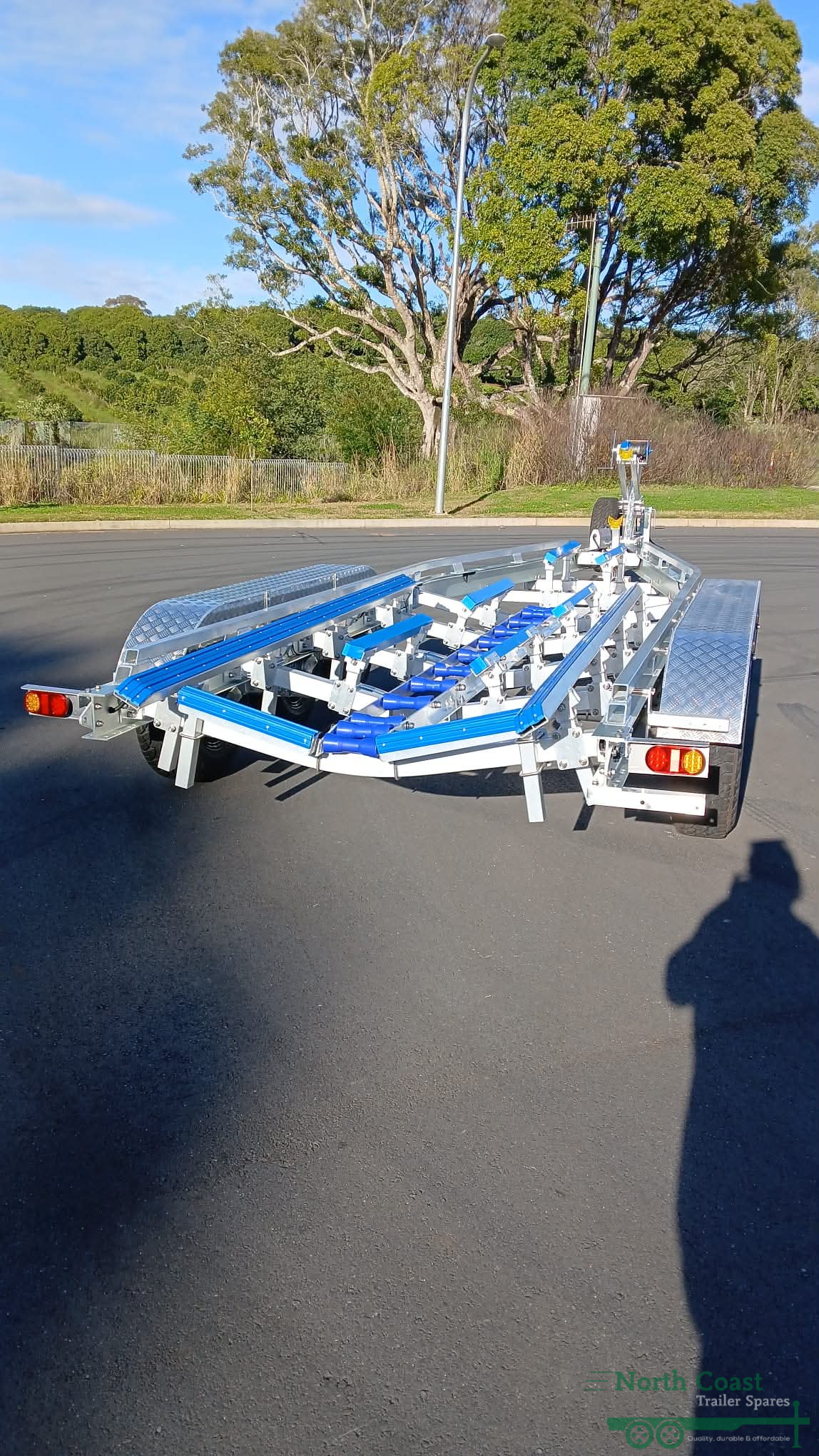

• Rear view of HRAB2830RH7H tri-axle aluminium boat trailer showing drive-on tail design and poly bunks.

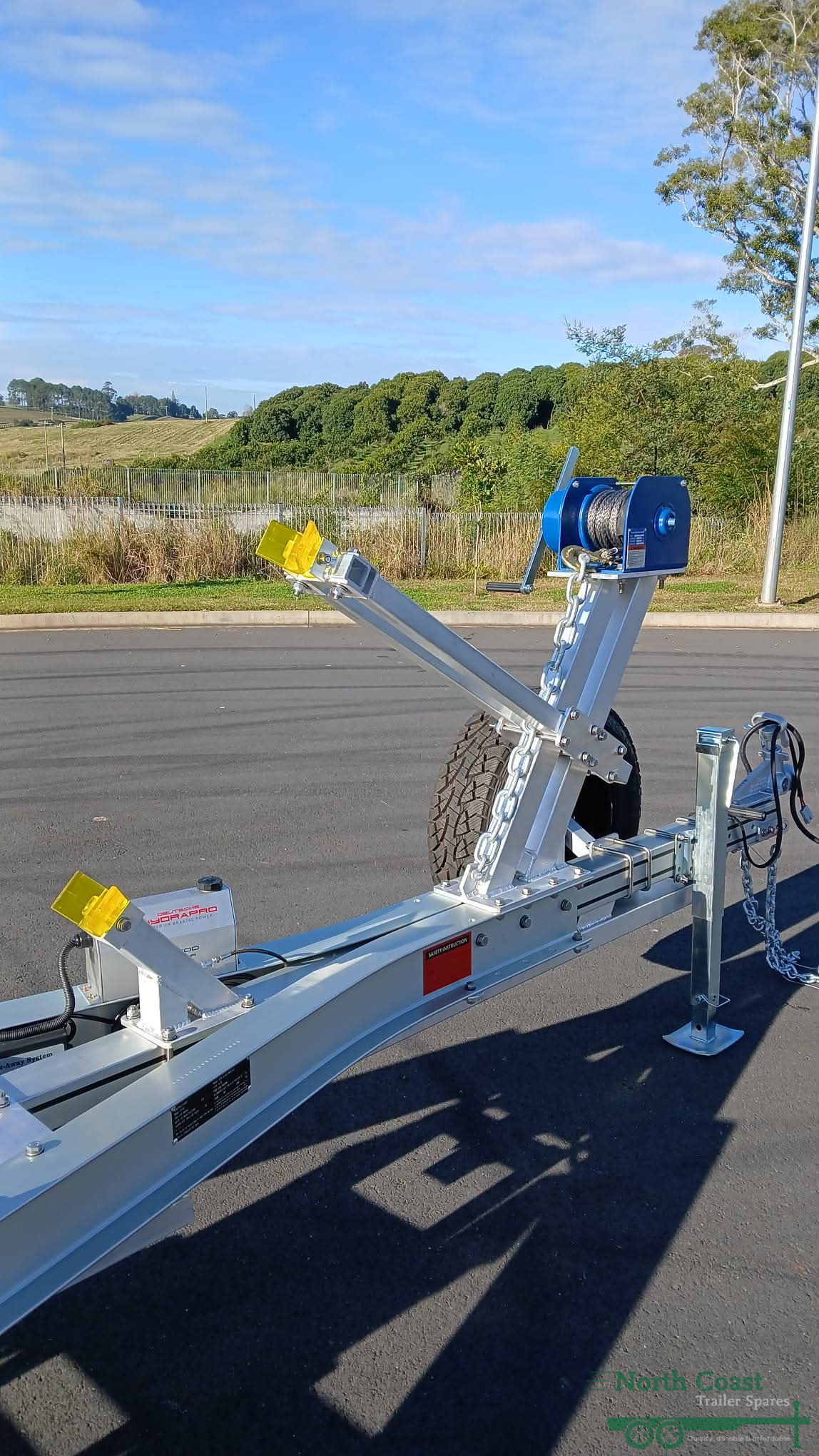

Hydrapro Electric Over Hydraulic brake actuator and winch post assembly on a 4500kg aluminium boat trailer.

Premium Tri-Axle Aluminium Boat Trailer 4500kg ATM | HRAB2830RH7H

$23,500.00

Heavy-Duty Tri-Axle Aluminium Boat Trailer (SKU: HRAB2830RH7H)

Engineered for major vessels from 8.2m to 9.5m, this rust-free alloy trailer offers a 4500kg ATM with a ~930kg tare weight.

  • Capacity: 4500kg ATM with tri torsion axles and hydraulic disc brakes across all three axles.
  • Braking: Hydrapro Electric-Over-Hydraulic Alpha G1600 Actuator with a complete breakaway system.
  • Design: Poly bunks, center keel rollers, drive-on tail, aluminum fenders, and marine-grade stainless steel hardware.
product enquiry >>
SKU: HRAB2830RH7H Category: Tags: , , , , , , , , , , , , , , , ,

Description

Commercial-Grade Tri-Axle Aluminium Boat Trailer (SKU: HRAB2830RH7H)

Designed for vessels 8.2m to 9.5m, this 4500KG ATM Tri-Axle Aluminium Boat Trailer features a high-strength structural alloy frame with an estimated tare weight of 930kg.

Key Features & Specifications

  • Braking: Hydrapro Electric-Over-Hydraulic Alpha G1600 Actuator with hydraulic disc brakes on all three axles and a breakaway system.
  • Suspension & Hardware: Triple independent torsion axle system and 100% marine-grade stainless steel fasteners.
  • Loading: Low-friction blue poly bunks, heavy-duty centre keel rollers, self-centering tail design, and an integrated checkered plate walkway.
  • Dimensions & Build: Total length 9.2m, width 2.48m; fitted with 225 70R15C commercial tyres on alloy wheels and aluminium checkered plate fenders.

Available for viewing and custom order configurations at our Alstonville showroom, supplying the Northern Rivers region.
