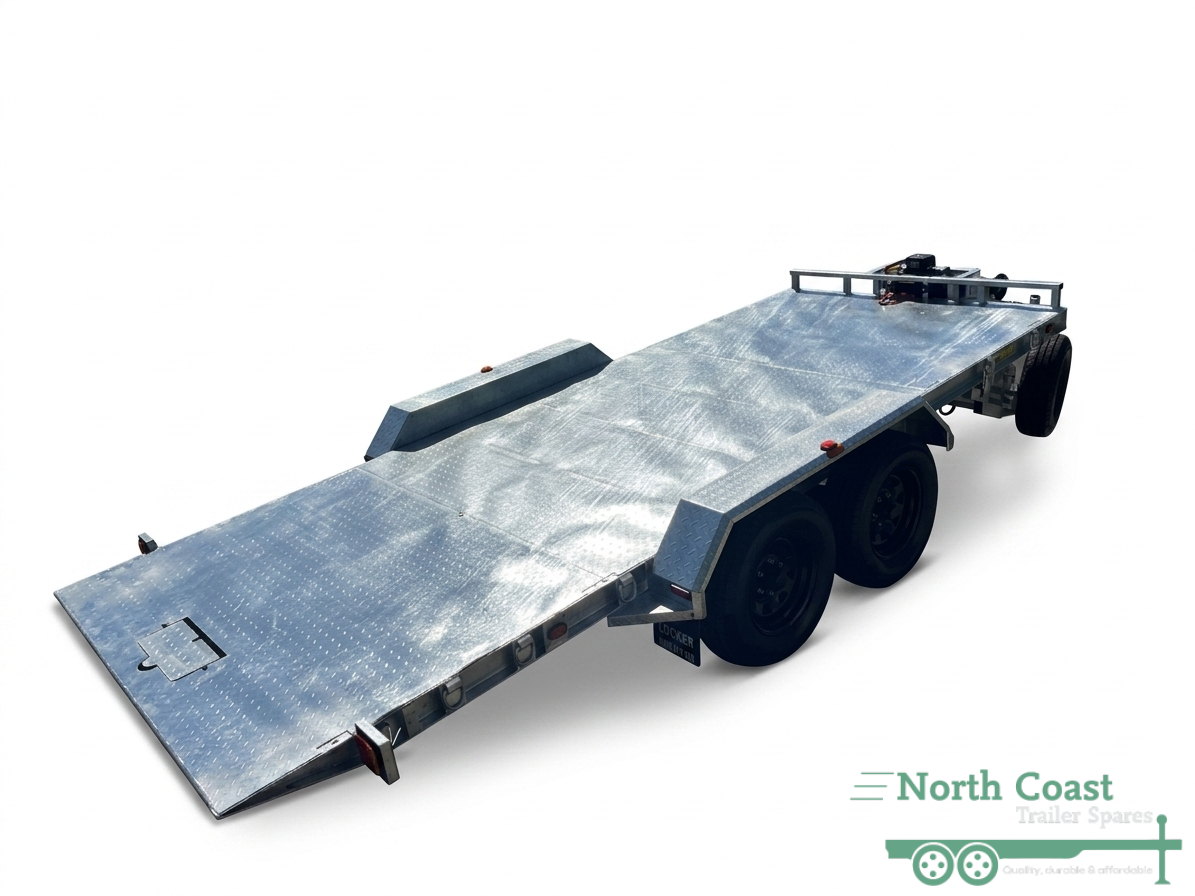

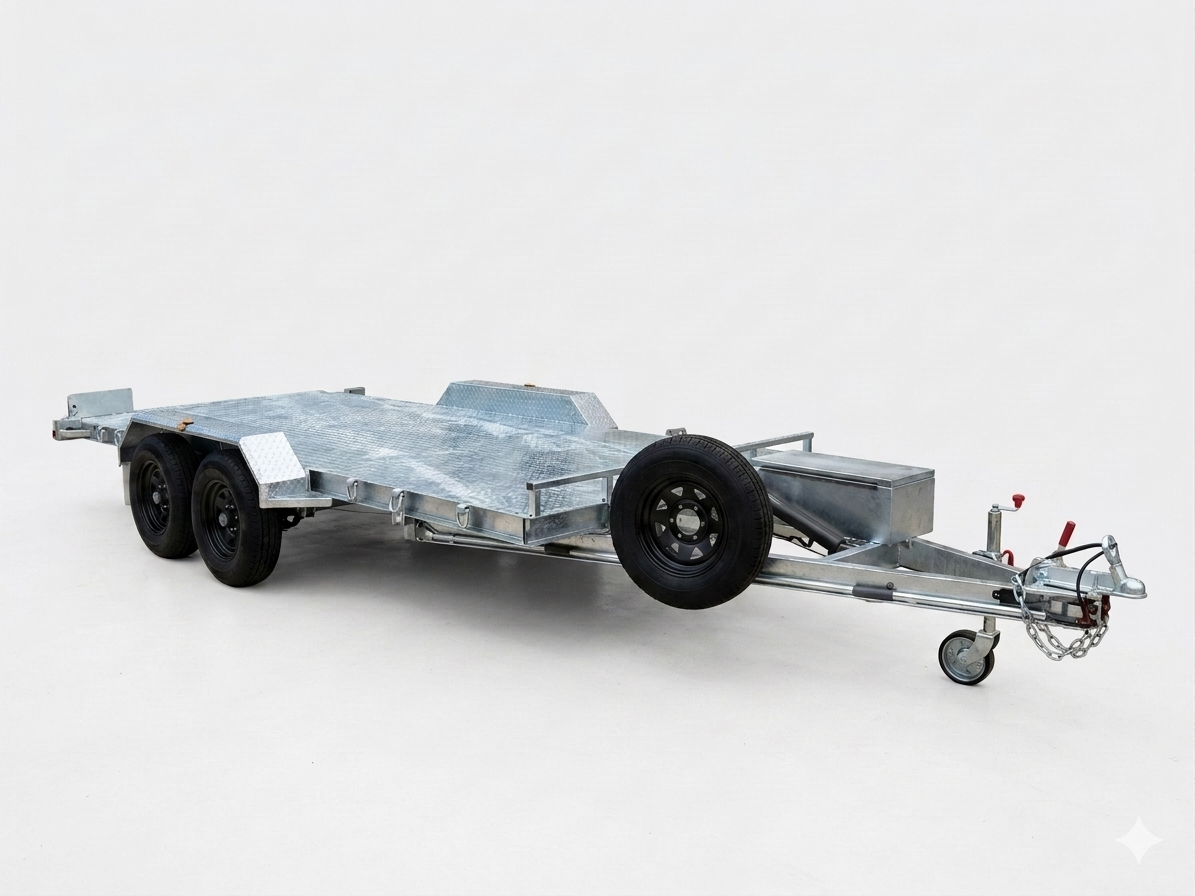

3.5T/4.4T Hydraulic Rampless Car & Machinery Trailer

Description

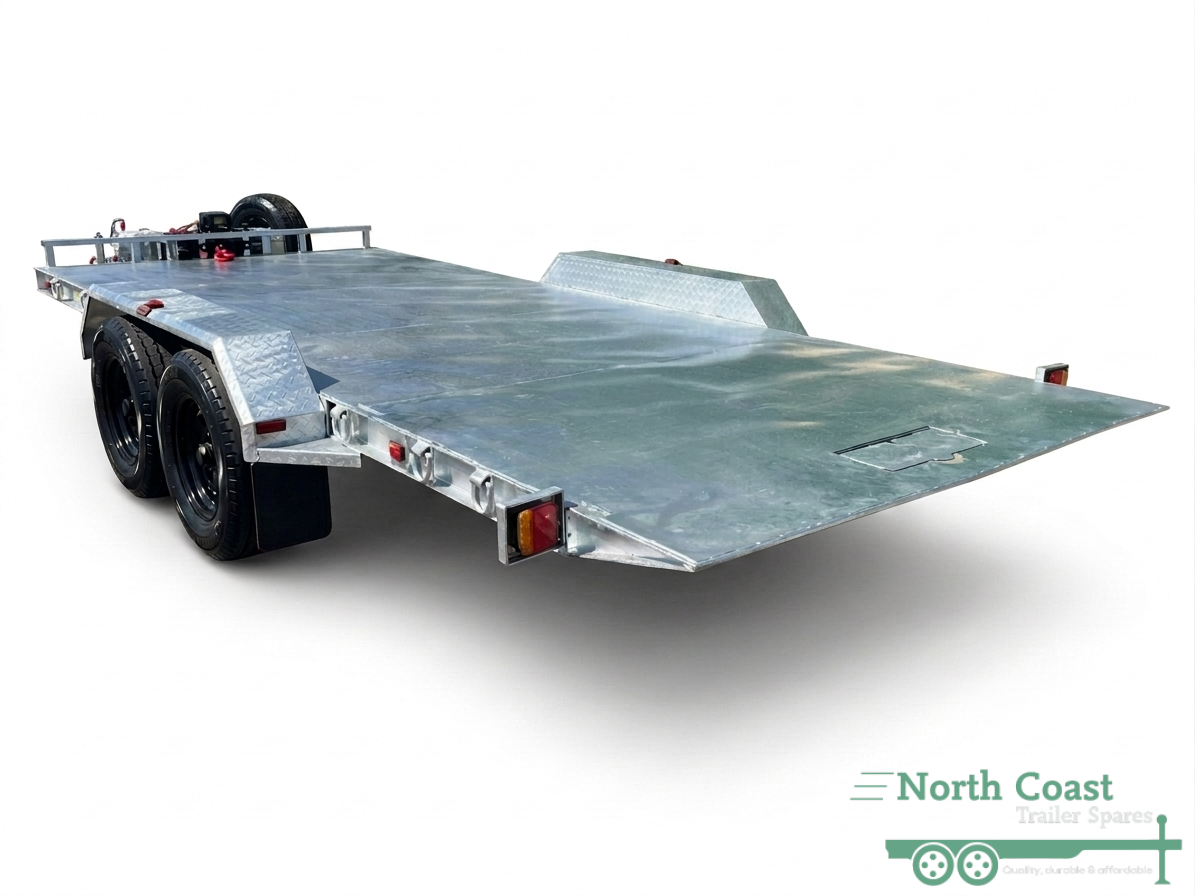

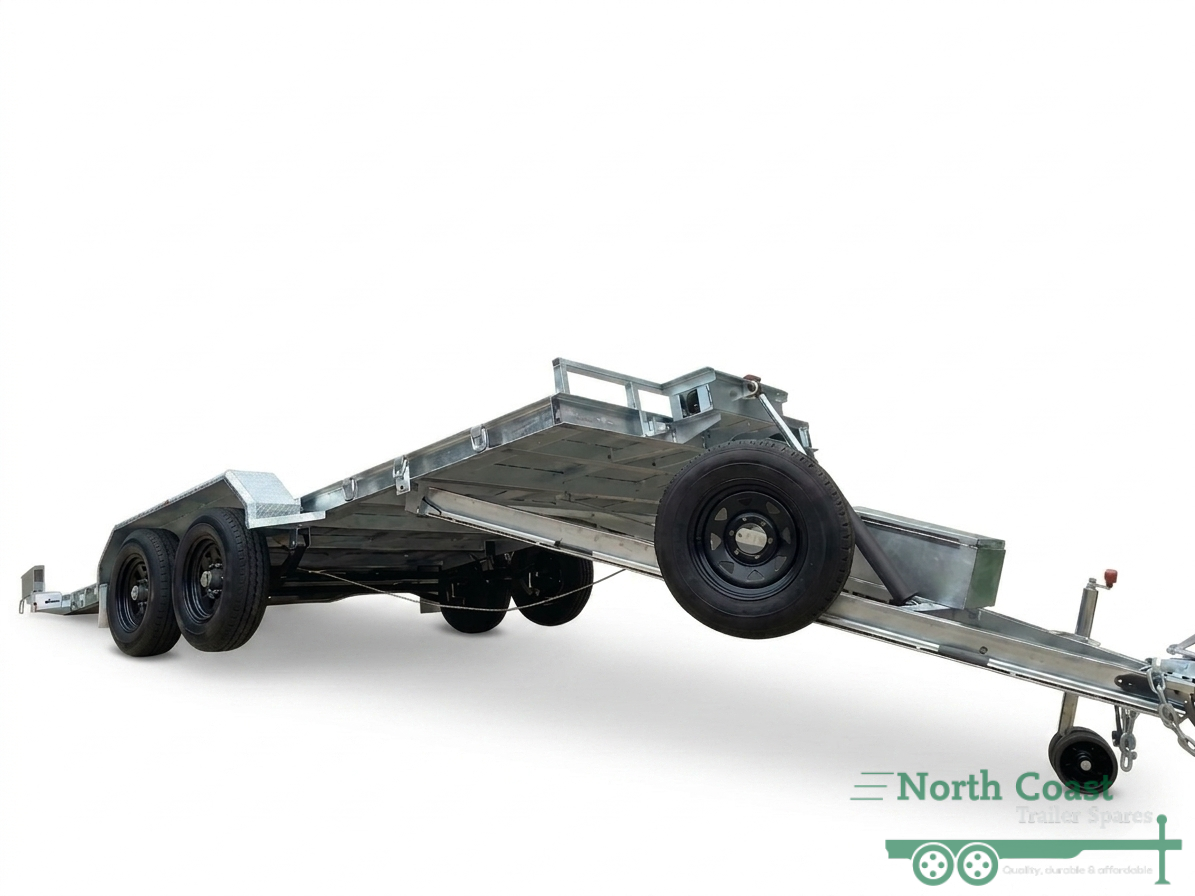

• •  Zero-Ramp Hydraulic Tilting System: Ditch the ramps. The entire deck tilts hydraulically via a high-performance electric motor and pump. Control the operation smoothly using either the wired controller or the included wireless remote.
  •  Ultra-Low Profile Wheel Guards (Only 175mm): Wheel arches extend just 175mm above the trailer deck. This unique low-profile design allows you to open most vehicle doors completely without striking the guards—eliminating door damage entirely.
  •  Integrated 13,500lb Deck Winch: Housed securely inside an integrated steel winch box built directly into the front of the trailer deck. This heavy-duty 6.2-ton winch comes complete with its own wireless and wired remotes for effortless recovery.
  •  Heavy-Duty Japanese Dexter Bearings: Built for long-haul reliability and heavy payloads with premium, genuine Dexter wheel bearings and a heavy-duty 9-leaf rocker roller suspension rated up to 4500kg.

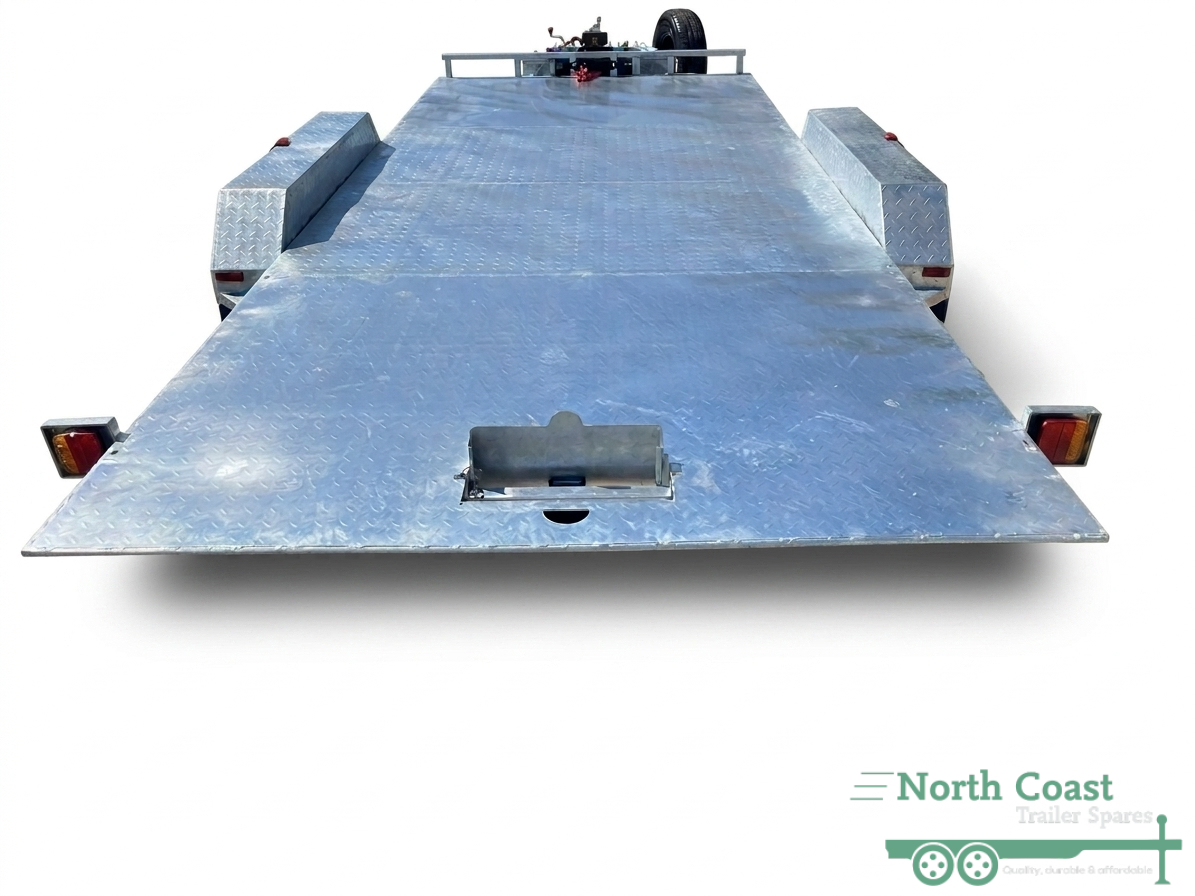

  •  Clean, Clear 2.0m Wide Deck: Get 5.0m x 2.0m of completely usable deck area clear of obstacles, giving you a full 2000mm width clearance between the mudguards to fit almost any modern motor vehicle or wide-track machine.

• • Chassis & Construction: 125mm x 55mm structural C-section chassis with extra under-body structural bracing. Fully welded heavy-duty steel body, entirely hot-dipped galvanised for maximum rust prevention.
  • Drawbar: 1900mm extended drawbar constructed from 125mm x 55mm C-section steel for superior tracking and easier reversing.
  • Braking System: 4-wheel x 12-inch electric drum brakes paired with an integrated emergency brake-away system to meet strict Australian Design Rules (ADRs).
  • Tie-Down System: 12 total fold-down tie-down points (6 recessed neatly along each side in a C-section channel), perfect for transport straps or heavy chains.
  • Running Gear: Dual 60mm solid axles, 15-inch x 6-stud Sunraysia steel rims, and brand new 8-ply 195 R15 commercial light truck tyres.

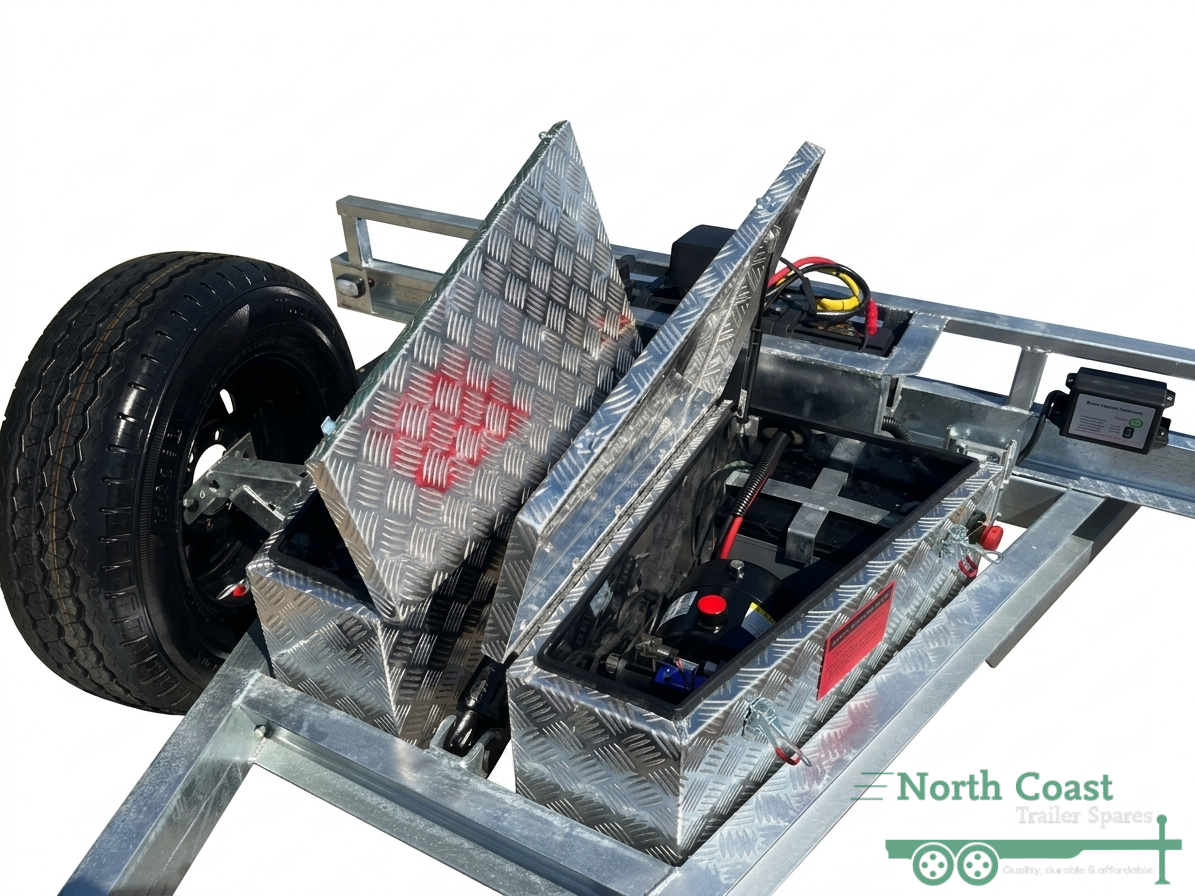

  • Onboard Power Box: Heavy-duty steel toolbox mounted securely to the drawbar housing the hydraulic pump, high-torque electric motor, and a deep-cycle battery.
  • Lighting: Multi-volt 12V / 24V marine-grade LED lights alongside bright LED side marker lights. Full ADR compliance.
  • Coupling & Towing: 50mm x 3.5t quick-release coupling, 3500kg tow hitch brake/handbrake, twin 8-inch extra heavy-duty swing-up jockey wheel (1200kg rated), and 2x heavy-duty safety chains paired with 3-ton hammerlocks.

1. 1. Industrial Longevity: By choosing a trailer that is fully welded before being submersed in hot-dipped zinc galvanising, you secure complete coverage inside and out against rust, road salt, and harsh weather.
   2. Maximum Utility: The 2.0m clear deck space width means you won’t have to turn away wider American pickups, commercial vans, or wide-track scissor lifts.
   3. Safer Loading Environments: No risk of ramps slipping off or buckling under load. Operators can stand well clear of the vehicle during loading by utilizing the wireless remote control setups for both the tilting deck and the 13,500lb recovery winch.
