Description
8 x 5ft Scissor Lift/ Plant / Machinery / Excavator Trailer – 2900kg ATM
Looking for a heavy-duty, reliable solution to transport your plant equipment, scissor lifts, or micro excavators
This premium 8x5ft Plant and Machinery Trailer is engineered for the toughest Australian conditions. Featuring a massive 2210kg payload and a low-profile deck, loading and unloading your machinery has never been safer or easier.
 Key Highlights
-
- Massive Payload: Carry up to 2210kg safely.
- Low-Profile Deck: Easy 440mm ground clearance.
- Maximum Durability: Fully welded, hot-dip galvanised chassis.
- Premium Towing: Smooth 3500kg rocker roller suspension.
- Advanced Safety: Built-in electronic emergency breakaway system.
 Technical Specifications
-
- ATM: 2900kg
- Tare Weight: 690kg
- Payload Capacity: 2210kg
- Deck Size: 2500mm x 1500mm
- Width Between Arches: 1600mm
- Deck Height: 440mm from ground level
- Drawbar: 1400mm long (100mm x 50mm)
- Chassis: 100mm x 50mm fully welded frame

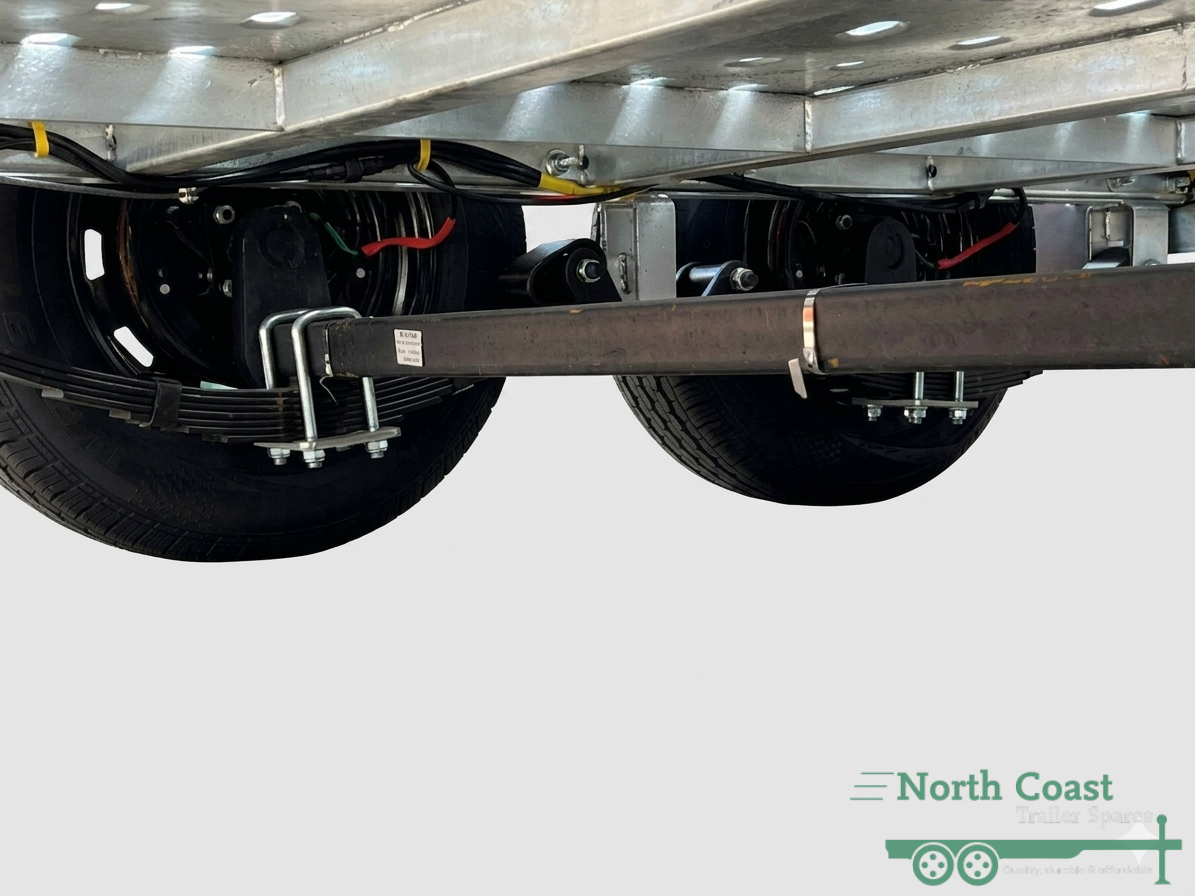

- Axles: Dual 50mm solid square drop axles
- Bearings: Premium Japanese Ford parallel bearings
 Premium Inclusions
Heavy-Duty Loading System
-
- Extra-Long Ramps: 1700mm x 400mm heavy-duty hinge-down ramps.
- Anti-Squat Brackets: Keeps the trailer stable during loading.
- Heavy-Duty Floor: Reverse-punched steel hot-dip galvanised checker plate.
Braking & Safety
-
- Electric Brakes: 4-wheel 10-inch electric drum brakes.
- Breakaway System: Integrated emergency brake-away unit.
- Coupling: 50mm 3500kg quick-release coupling.
- Safety Chains: Fitted with Hammerlock system and D-shackle.
Suspension & Wheels
-
- Rocker Roller: 7-leaf load-share greaseable suspension (3500kg rated).
- Tyres: Brand new 8-ply 185 R14 light truck tyres.
- Rims: Heavy-duty 14-inch 5-stud Sunraysia wheel rims.
Electrics & Extras
-
- LED Lighting: Multi-volt 10/30v LED lights with side markers.
- Tie-Downs: 2 x high-strength fold-down tie-down points.
- Jockey Wheels: Swing-up twin 8-inch heavy-duty jockey wheels (1200kg rated).
 Ideal For:
- Scissor lifts
- Mini & micro excavators
- Bobcats & skid steers
- Heavy plant and agricultural machinery
