Description
This 10 x 6 ft Hi-Side Premium Tandem Box Trailer is engineered for maximum durability and high-capacity hauling. Built with a fully welded chassis and hot-dipped galvanized finish, it is designed to withstand the toughest Australian conditions while providing a massive 2850kg payload.
Maximize your hauling potential with this heavy-duty 10 x 6 ft Hi-Side Premium Tandem Trailer. Featuring a 3500kg ATM and a massive 2850kg payload, this is one of the highest-capacity volume trailers on the market, engineered specifically for those who move serious weight.
Ultimate Loading Versatility
This unique, heavyweight trailer is purpose-built for transporting heavy machinery, including bobcats, excavators, and tractors. The dual heavy-duty loading ramps are fully adjustable across the entire width of the rear receiver, giving you the flexibility to load everything from narrow-track mowers and recreational vehicles to wide-wheelbase machinery with ease.
Built for Professionals
Whether you are a machinery operator, tradesman, farmer, or landscaper, this trailer provides the structural integrity needed for daily commercial use. It is the ultimate tool for heavy-duty site work, agricultural hauling, or high-volume residential removals.
Heavy-Duty Construction
- ATM: 3500kg
- Payload: 2850kg (Tare: 650kg)
- Chassis: Fully welded floors (front and rear) for superior structural integrity.
- Finish: Hot-dipped galvanized steel for maximum corrosion resistance.
- Floor: Heavy-duty 2.5 mm checker plate.
- Drawbar: 1950mm extra-long (100 mm x 50 mm) for easier reversing and better tracking.
Superior Load Support
- Axles: Solid 50 mm axles.
- Suspension: 9-leaf greaseable load-sharing roller rocker springs (4500kg rated).
- Bearings: High-quality Japanese Dexter bearings (4500kg rated).
- Wheels: 15-inch x 6 stud Sunraysia rims with new 8-ply 195 R15 light truck tyres.
Premium Features & Safety
- Loading Ramps: Two extra-heavy-duty ramps stored under the deck; adjustable positioning along the rear receiver.(Rated 2500Kg Combined)

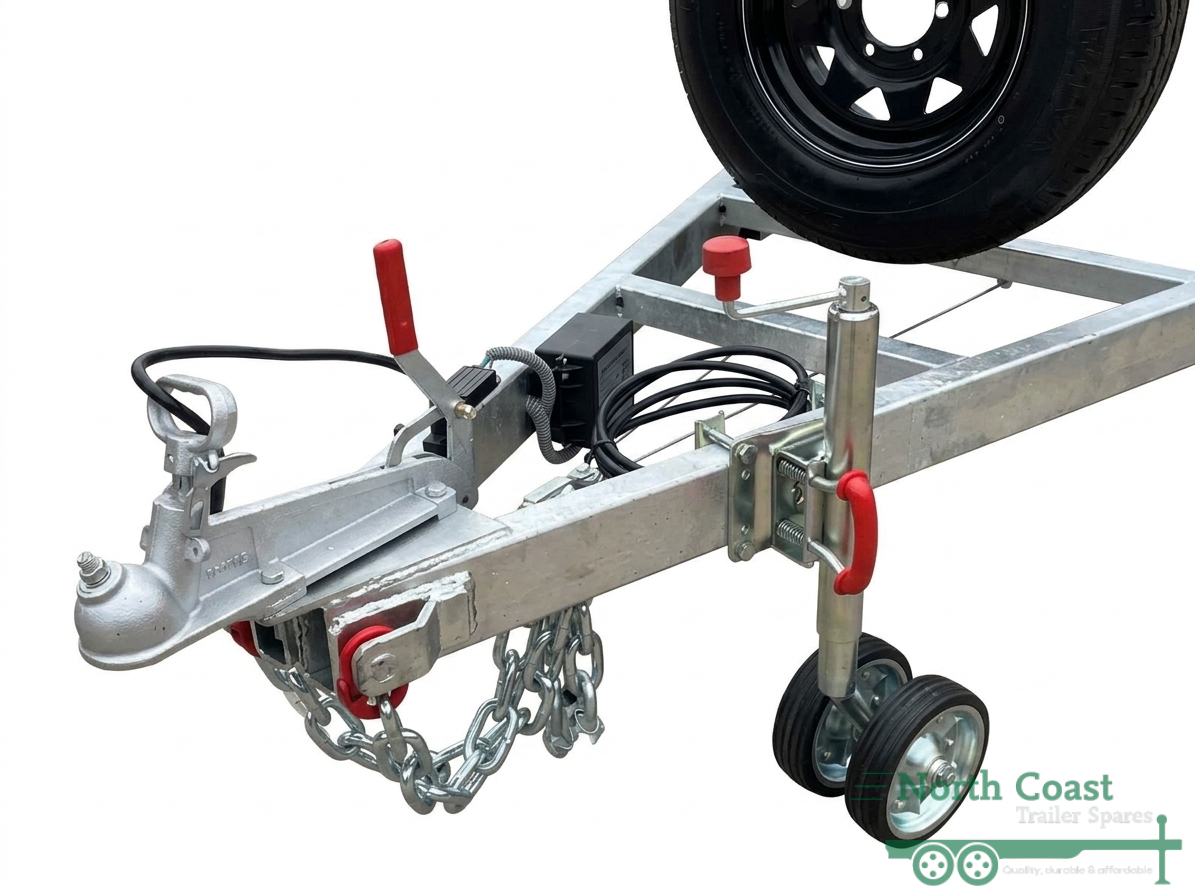

- Jockey Wheel: Twin 8-inch swing-up design (1200kg rated) for effortless maneuvering.
- Braking: 3500kg 50 mm coupling with an integrated handbrake.
- Safety: Twin 10 mm rated safety chains with a secure Hammerlock system.
- Lighting: 10/30v multi-volt LED trailer lights for universal compatibility.
Functional Versatility
- Accessibility: Drop-down front and rear gates with 400 mm high sides.
- Tie-Downs: Full-length tie-down rails on all four sides.
- Ladder Racks: Integrated holders at the front and rear.
- Strength: Triple-folded, full-length sidesteps for easy access and added side-wall rigidity.
Customization Options
Enhance your trailer’s functionality with our range of premium bolt-on accessories, designed to help you get the most out of every load.
900 mm High Mesh Cage
- Maximum Volume: Drastically increase your carrying capacity for green waste, firewood, or bulky items.
- Security: Features a heavy-duty mesh design with easy-access gates.
Heavy-Duty Ladder Racks
- Dual Support: Front and rear racks allow for the secure transport of long materials like ladders, timber, and piping.
- Removable Design: Easily take them off when you need clear access to the trailer bed.
Lockable Aluminium Toolbox
- Secure Storage: Keep your tie-down straps, tools, and hitch locks safe and dry.
- Space-Efficient: Custom-fitted to the drawbar to maximize storage without interfering with your turning circle.
