Description

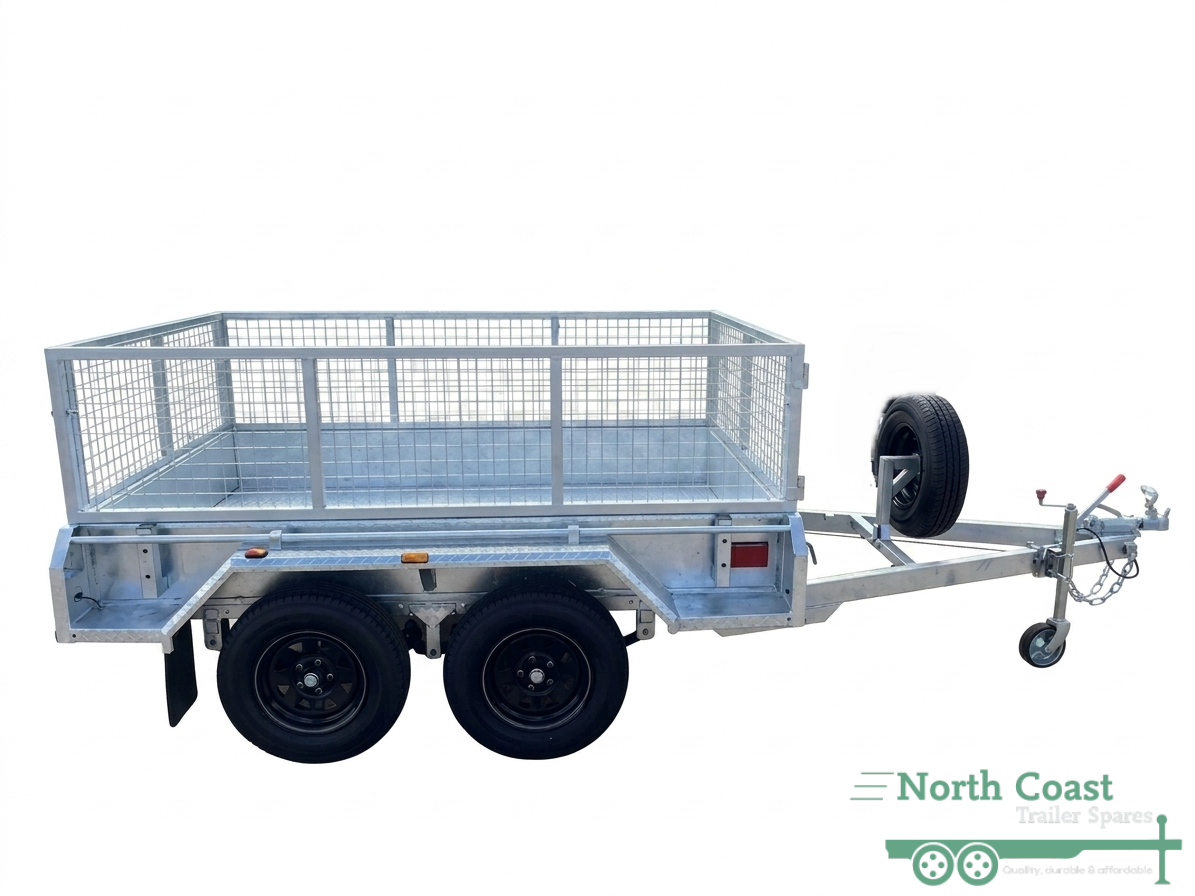

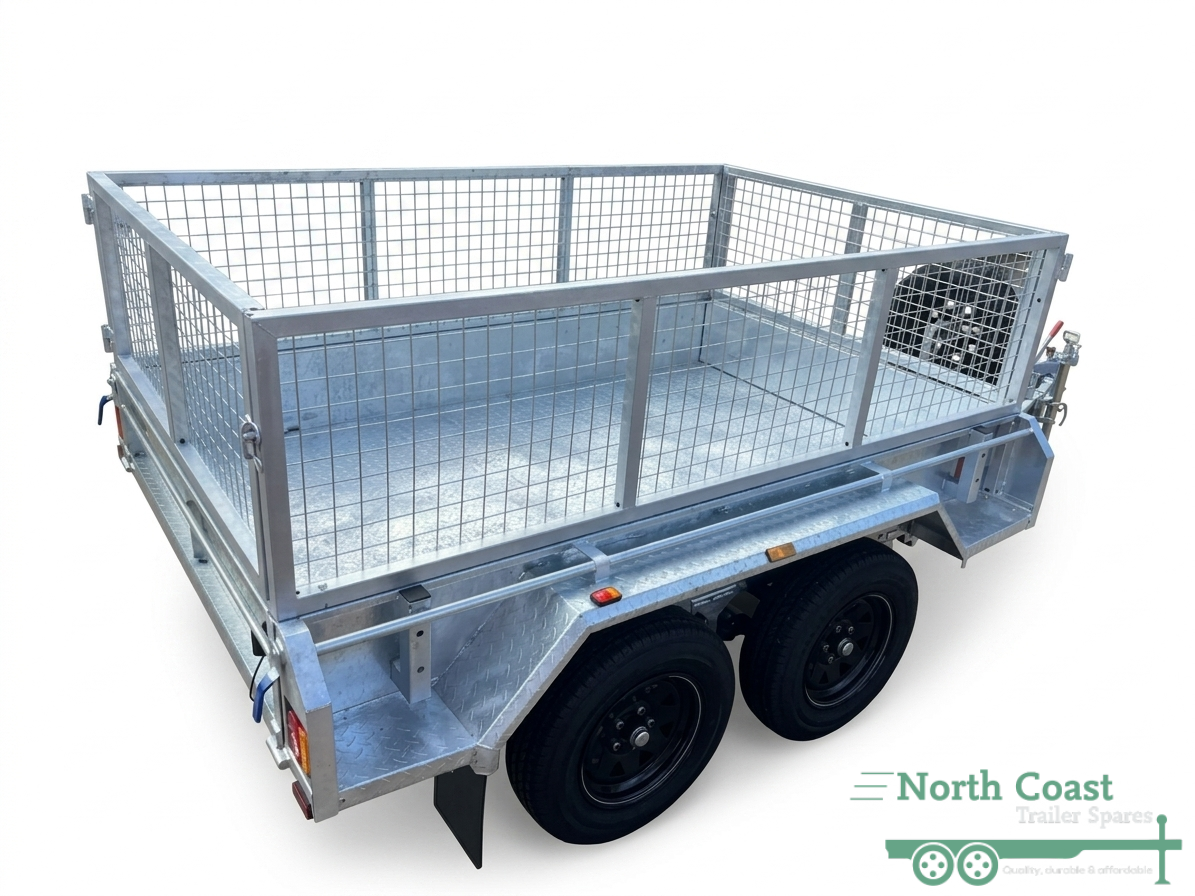

10×5 ft Tandem Box Trailer – Ultra-Premium – ATM 2000kg
The 10×5 Galvanised tandem box trailer come standard with Cage , Spare Wheel and Jockey wheel and blueslip
also can arrange Queensland rego.
10×5 Tandem Axle Box Trailer | Heavy-Duty Galvanized | Multi-ATM Options
This 10×5 tandem box trailer is the ultimate workhorse for those who need extra length and serious hauling power. Whether you are a tradesman or a property owner, this trailer is built to last with a fully welded chassis and hot-dipped galvanized finish for maximum corrosion resistance.
Now Available in Multiple Capacities:
- 2000kg ATMÂ (Standard Mechanical Brakes)
- 2900kg ATMÂ (Upgraded Braking System)
- 3200kg ATMÂ (Heavy-Duty Rating)
 Superior Build Quality
- Fully Welded Construction: Floor and chassis are 100% welded—not stitch welded—for ultimate structural strength.
- Hot-Dipped Galvanized:Â The entire unit is galvanized after welding to ensure every corner is protected against rust.
- Extra-Long Drawbar:Â Features a 1950mm (100mm x 50mm) drawbar for effortless reversing and improved road handling.
- Reinforced Floor:Â Heavy-duty 2.5mm checker plate floor designed for heavy impact and durability.
 Heavy-Duty Running Gear
- Solid 50mm Axles:Â Built to withstand maximum loads without flex.
- Roller Rocker Suspension:Â 6-leaf greaseable load-sharing springs provide a smooth ride and even weight distribution.
- Premium Bearings:Â Fitted with high-quality Japanese Ford Slimline bearings for long-term reliability.
- Braking System:Â 2 Ton inertia mechanical disc brakes with an integrated handbrake for safety and control.
 Practical Features
- Triple-Folded Side Steps:Â Full-length sidesteps with triple folds for incredible rigidity and easy access.
- Front & Rear Access:Â Both front and rear gates drop down to accommodate longer loads.
- Cargo Security:Â Full-length tie-down rails on all four sides.
- Ladder Rack Ready:Â Pre-installed holders at the front and rear for easy ladder rack fitting.
- High-Spec Lighting:Â 10/30v multi-volt LED lights compatible with all modern tow vehicles.
 Specifications (2000kg Model)
- Internal Dimensions:Â 3030mm x 1530mm
- Side Height:Â 300mm
- Tare Weight:Â 590kg
- Payload:Â 1410kg (on 2000kg ATM model)
- Wheels:Â 14-inch 5-stud Sunraysia rims
- Tyres:Â New 185 R14 Light Truck tyres
- Jockey Wheel:Â 8-inch heavy-duty swing-up style (Included)
If by chance there is a problem we are here !!, We have a fully equiped workshop and spare parts shop to fix it.
