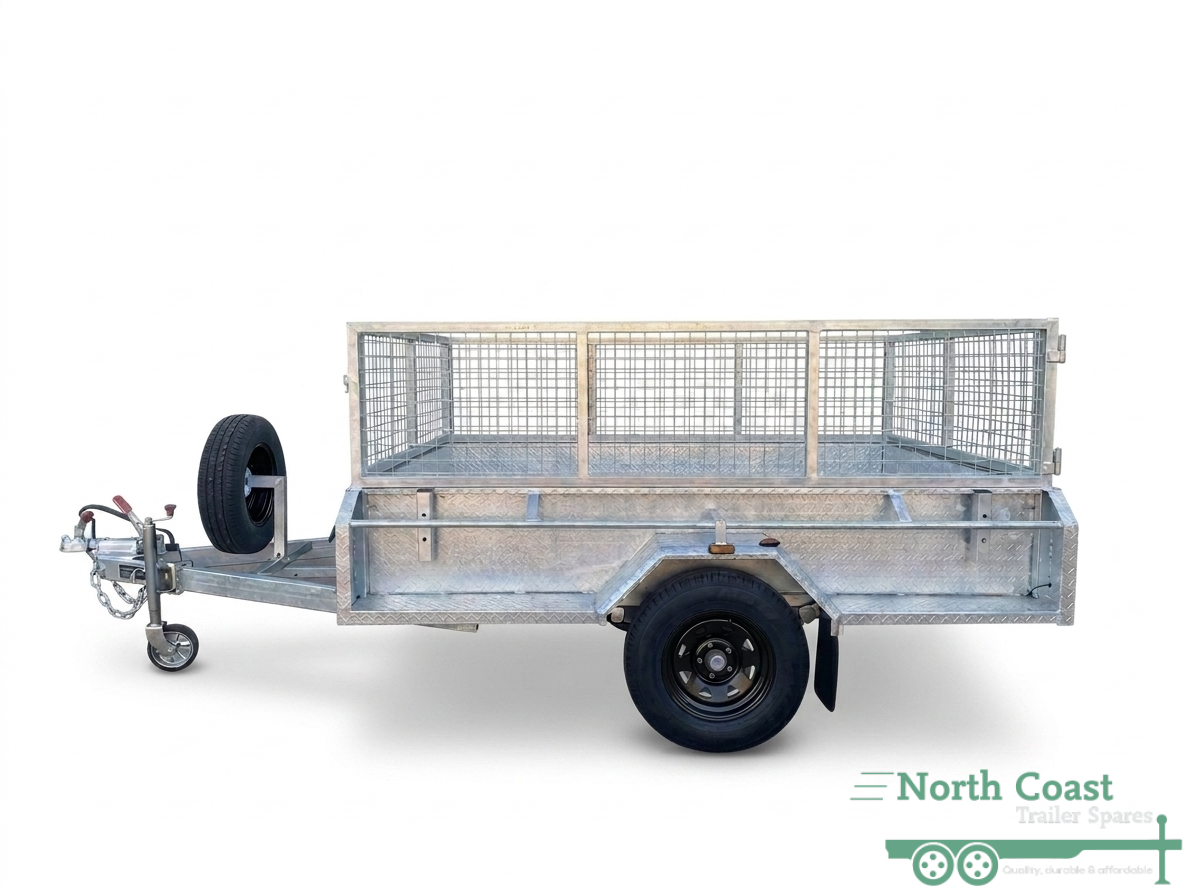

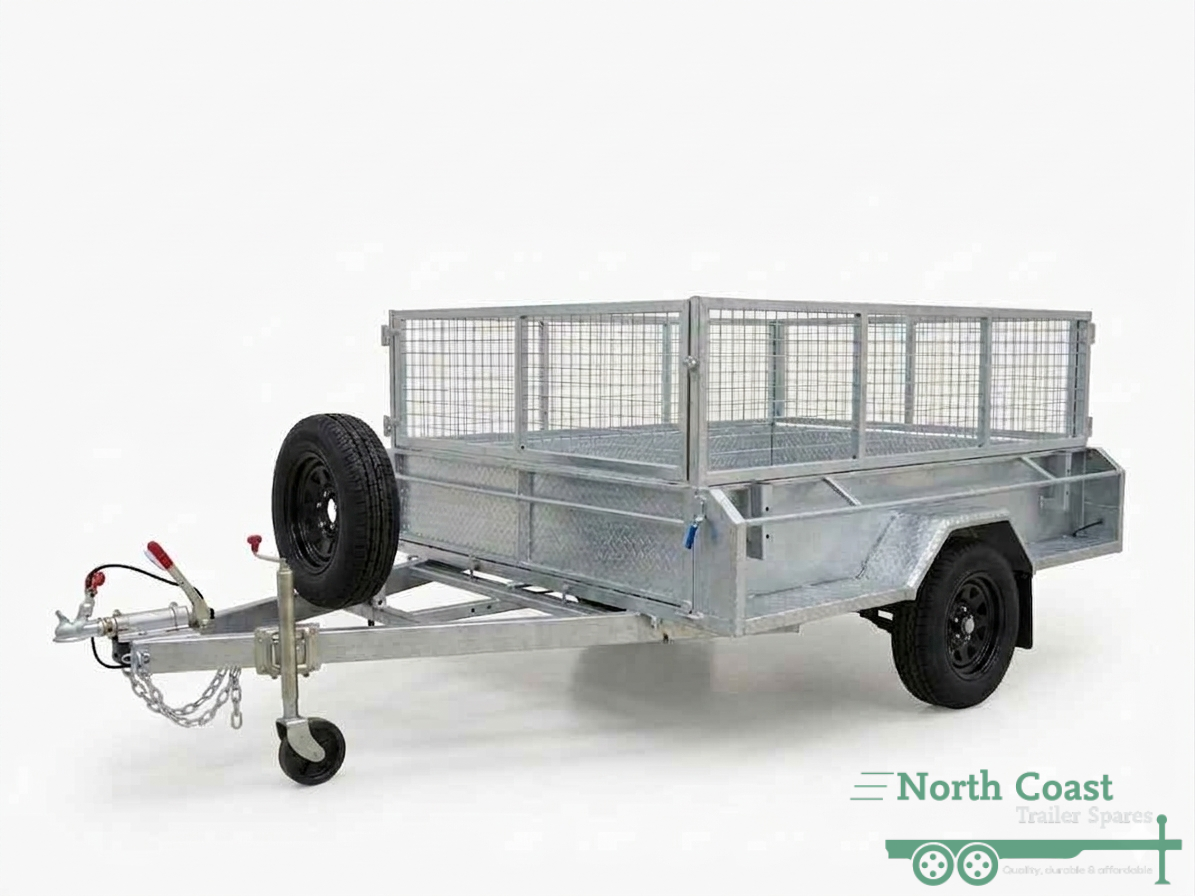

8 x 6 ft Premium Heavy Duty Hi-Side Box Trailer – ATM 1500kg
This 8 x 6 ft Premium Heavy Duty Hi-Side Box Trailer is built for those who need maximum space and strength without the bulk of a tandem axle. With its massive 1830mm internal width, it easily accommodates extra-wide ride-on mowers, ATVs, and recreational vehicles, while remaining incredibly easy to manoeuvre.
Fully welded and hot-dipped galvanized, this trailer is designed to handle the toughest Australian conditions.
Key Features & Specifications
Capacity & Dimensions
-
- ATM: 1500kg
- Tare: 480kg | Payload: 1020kg
- Internal Dimensions: 2430mm x 1830mm
- Sides: 400mm high for extra volume
Heavy-Duty Construction
-
- Finish: Fully Welded then Hot Dipped Galvanized for ultimate rust protection
- Floor: 2.5mm Heavy Duty Checker Plate
- Welding: Continuous fully welded floors (front and rear), not stitch welded
- Sidesteps: Full-length, triple-folded sidesteps for superior strength
Chassis & Suspension
-
- Drawbar: 1650mm long (100mm x 50mm) for easy reversing and stable towing
- Axle: Solid 50mm Axle
- Suspension: 8-Leaf Eye-to-Eye Springs (1500kg capacity)
- Brakes: 2-Ton Inertia Mechanical Disc Brake System with integrated handbrake
- Bearings: High-quality Japanese Ford Slimline Bearings
Functional Versatility
-
- Tilt Function: Easy Tilting Mechanism for effortless loading/unloading
- Access: Drop-down front and rear gates
- Tie-Downs: Tie-down rails on all four sides for secure hauling
- Extras: Ladder rack holders built-in (front and rear)
Wheels & Electrical
- Tyres: New 185 R14 Light Truck Tyres
- Rims: 14-inch x 5-stud Sunraysia rims
- Jockey Wheel: 8-inch Swing-up Jockey Wheel included
- Lighting: 10/30v Multi-volt LED Trailer Lights

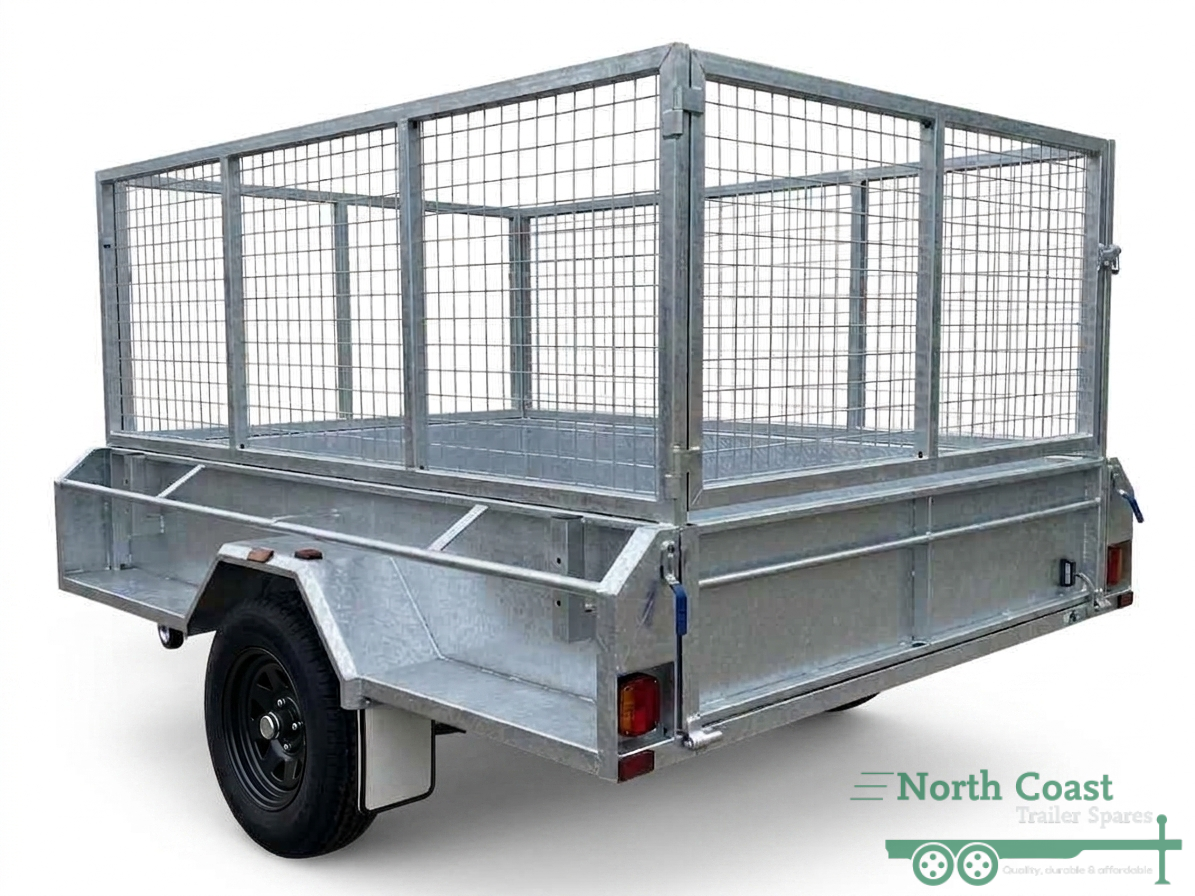

Reinforced with 400mm high sides and a heavy-duty 1500kg ATM, it delivers a massive 1020kg payload capacity. Whether you’re a professional contractor or a weekend adventurer, this fully galvanized, tilting workhorse is engineered to handle your toughest loads with ease. For maximum volume, take advantage of our 900mm Cage Upgrade for only $300.
