AL-KO Mechanical Coupling 2000 kg #614054PL
$145.00
AL-KO 50mm Override Trailer Coupling – 2000kg Rated Mechanical & Hydraulic Premium Model
Ensure complete heavy-duty towing security and legal compliance. Precision engineered in Australia, the genuine AL-KO 614054PL Premium Override Coupling is the ultimate choice for dual-axle boat trailers, commercial box trailers, and caravans utilizing mechanical cable or hydraulic braking systems up to 2 Tonnes. Featuring a quick-release snap-on handle mechanism, it locks instantly onto standard 50mm tow balls and is fully certified under the latest road vehicle safety rules.
- 2000kg Capacity: High-grade zinc-plated solid steel casting built for heavy light-to-medium trailer applications.
- Dual-System Versatility: Dual-drilled structure seamlessly suits both mechanical handbrake levers and hydraulic master cylinder brackets.
- Universal 4-Bolt Pattern: Standard 184mm x 54mm centers with 13.5mm bolt hole channels for straightforward retrofits.
- Certified Road Safety: Fully granted Component Type Approval (CTA-060194) for complete road legality.
Fully in stock at North Coast Trailer Spares for only $145.00 AUD. Order online for fast $25 flat-rate Australia-wide shipping, or choose immediate over-the-counter Local Pickup at our Alstonville storefront!
SHIPPING INFORMATION
Shipping Australia wide
Local Pickup – 1/20 Kay’s Lane, Russellton Industrial Estate, ALSTONVILLE NSW 2477
About AL-KO Mechanical Coupling 2000 kg #614054PL

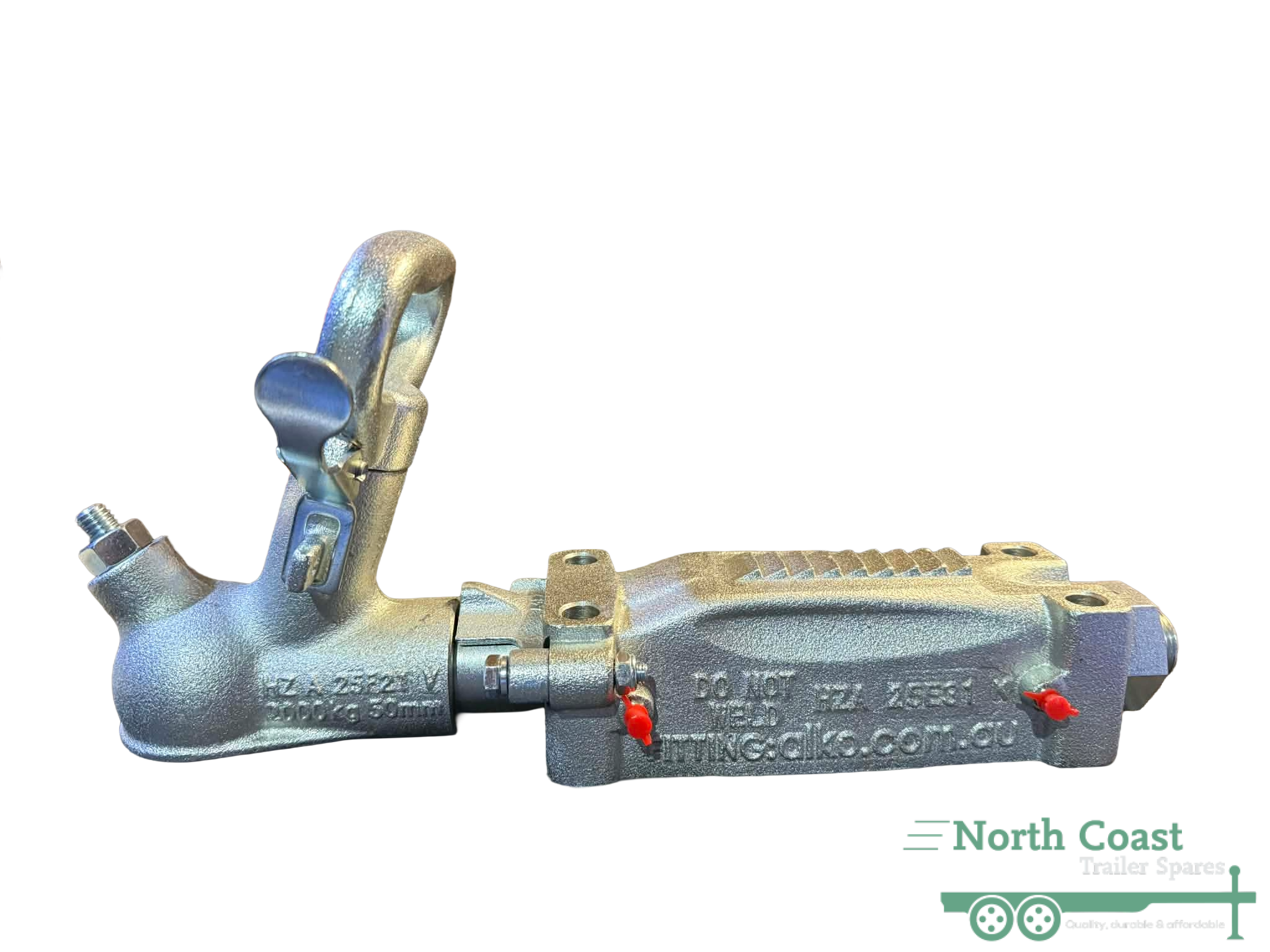

Genuine AL-KO 614054PL 2000kg Mechanical Override Trailer Coupling (Hydraulic / Mechanical — 2T ATM)
Upgrade your braking system with premium, road-legal Australian towing technology. The genuine AL-KO 614054PL Premium Mechanical Override Coupling is a high-strength, heavy-duty hitch engineered specifically for trailers, caravans, and boat trailers running overrun braking systems up to 2 Tonnes.
Brakes are a strict legal mandate across Australia on all trailers and caravans with a Gross Trailer Mass (GTM) exceeding 750kg. This premium unit offers a highly reliable solution, working seamlessly with both mechanical cable links and hydraulic master cylinder configurations. Cast from solid steel and protected by a dense, industrial zinc-plated finish, it delivers top-tier resistance against rust, salt-water pitting, and harsh off-road highway debris.
Key Performance Features:
- Fully Certified Safety & Compliance: This assembly has been officially granted a component type approval (CTA-060194) under section 177 of the Road Vehicle Standards Rules 2019. It fully complies with all relevant national road vehicle standards and Australian Design Rules (ADR).
- Dual Hydraulic / Mechanical Utility: Engineered as a universal overrun hub, the body features integrated rear mounting lugs designed to comfortably bolt down a hydraulic master cylinder bracket or receive standard mechanical handbrake lever cables.
- Instant Snap-On Quick Release Latch: No tedious alignment struggles or missing components. The spring-loaded quick-release trigger handle automatically snaps down tightly over any standard 50mm vehicle tow ball when pressed downward.
- Quiet Anti-Rattle Adjuster Screw: Includes a top-mounted, fine-tuning retention screw. This allowing you to eliminate excess vertical play between the coupler jaw and the towball head, completely stopping annoying shunting noise and highway vibrations.
- Universal 4-Bolt Retrofit Pattern: Formulated with standard 184mm x 54mm bolt centres using deep 13.5mm fastening holes, matching existing drawbar tongue mounts for a direct bolt-on replacement process.
Technical Specifications:
- Brand: AL-KO
- Part Number / SKU: 614054PL (Replaces generic ORC50Z models)
- Maximum Load Capacity: 2,000kg (2 Tonne) ATM
- Coupling Class: Override / Overrun Braking (Hydraulic & Mechanical compatible)
- Suits Tow Ball Size: Standard 50mm
- Mounting Setup: Industry-Standard 4-Hole Base (184mm x 54mm centres)
- Fastener Hole Diameter: 13.5mm
- Material Finish: High-Grade Silver Zinc Plating
Ordering, In-Stock Availability & Storefront Pickup Options:
Don’t risk fines or structural failures with uncertified compliance imitations. Purchase online today from North Coast Trailer Spares for a highly competitive price of $145.00 AUD.
We ensure clear value with flat-rate $25.00 Australia-wide shipping, or you can skip the delivery queue entirely by picking up your parts today. This item is fully in stock and ready for immediate over-the-counter Local Pickup directly at our Alstonville storefront (Unit 1, 20 Kay’s Lane, Russellton Industrial Estate)!
