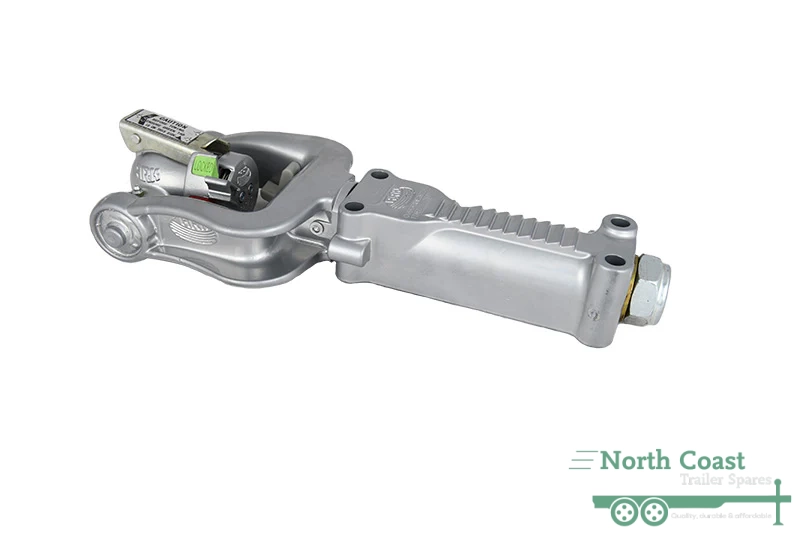

ARK Off-Road Coupling XO Series Suit Mechanical Over-ride brakes 2 Tonne Rated #ORXO50D

• • Full 360° Off-Road Articulation: Delivers unrestricted multi-axis movement and extreme flexibility to safely handle deep ruts, steep inclines, and rugged 4WD tracks.
  • Patented Quick-Hitch Locking System: Features a convenient, single-handed hitching mechanism. The coupling head automatically engages over the tow ball for fast, hassle-free hookups.
  • Visual Safety Indicators: Built-in red and green safety indicators provide immediate visual confirmation when the hitch is securely locked in place.
  • Mechanical Override Compatibility: Rated up to 2.0 Tonnes (2,000kg ATM) and specifically designed to integrate flawlessly with standard mechanical override braking systems.
  • Rattle-Free & Dust Proof: The robust cast-steel head completely encloses the tow ball, eliminating cabin-echoing rattles while shielding the internal components from dust, mud, and water ingress.
  • Low-Profile Design: Engineered with a sleek, low clearance height to allow rear vehicle tailgates and swing-out tire carriers to open easily without hitting the hitch.
  • Fully Compliant: Extensively tested and fully compliant with Australian Safety Standards AS4177.3.

• • 1 x Ark XO 2.0T Mechanical Override Off-Road Coupling
  • 1 x Bonus Ark-Branded 50mm High-Rise Tow Ball (specifically designed to guarantee perfect clearance during setup)

• Part Number: ORXO50D
• Load Rating: 2,000kg (2.0 Tonnes)
• Braking System: Mechanical Override
• Tow Ball Size: Standard 50mm (High-Rise included)
• Material: Heavy-duty cast steel with a durable rust-resistant finish

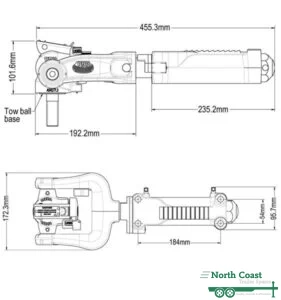

“Technical specifications and mounting dimensions blueprint for the Ark XO 2.0T Off-Road Coupling, detailing overall unit length, hitch clearance, and standard 4-bolt drawbar mounting hole spacing.”

PLEASE NOTE: Ark Recommends using the included ARK branded towball as it has a slightly longer shank than some standard 50mm Tow Balls which may cause installation issues
