Description

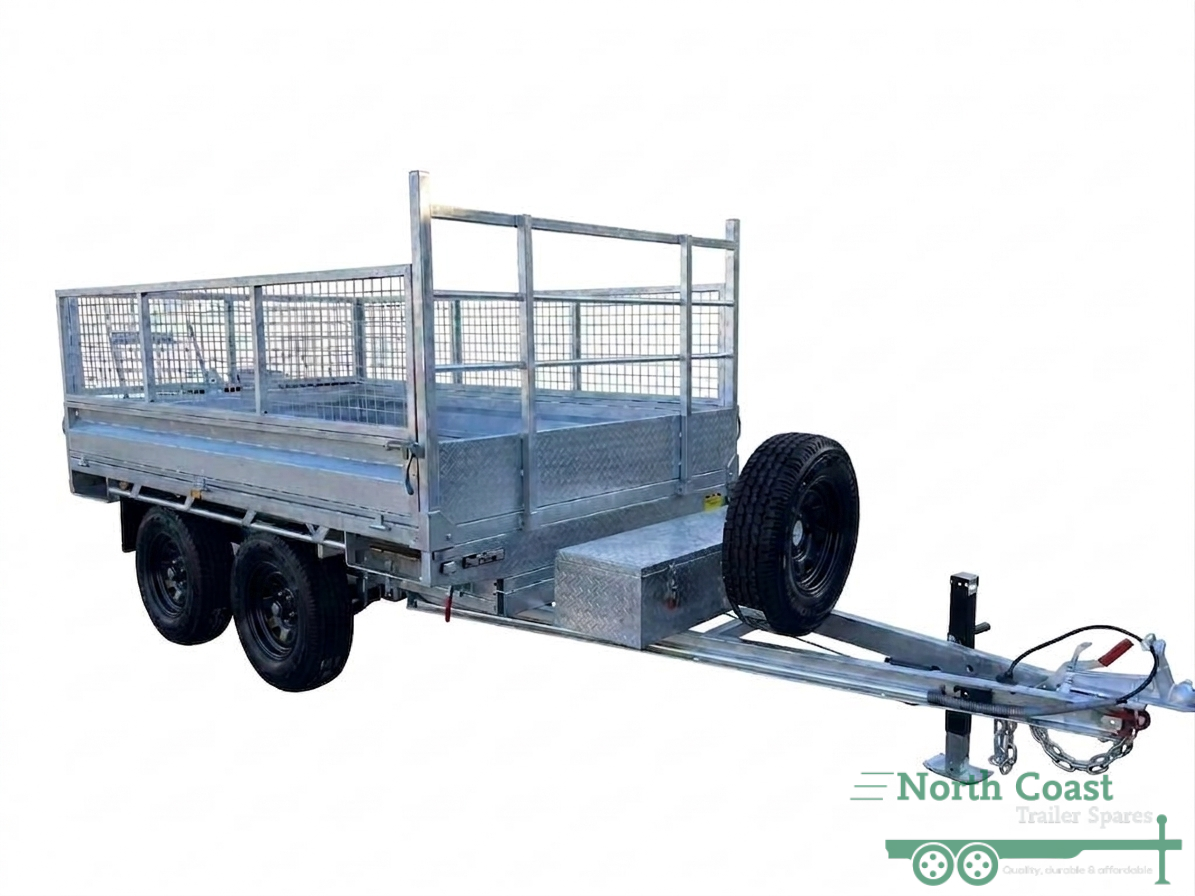

10×6 Heavy-Duty Flat Deck Hydraulic Tipper Trailer (3.5T / 4.5T ATM)
Short Description
The ultimate heavy-duty workhorse engineered specifically for harsh Australian conditions. Featuring a massive 4-stage hydraulic ram, 4mm extra-thick checker plate floor, and a versatile flat deck design with fully removable sides, this trailer is built for farmers, tradesmen, and heavy machinery operators who demand uncompromising durability.
Available to register in either 3,500kg or 4,500kg ATM configurations. This complete package includes a 600mm perimeter cage, heavy-duty loading ramps, and a 7,000lb swivel jockey stand.
Ultimate Loading & Tipping Versatility

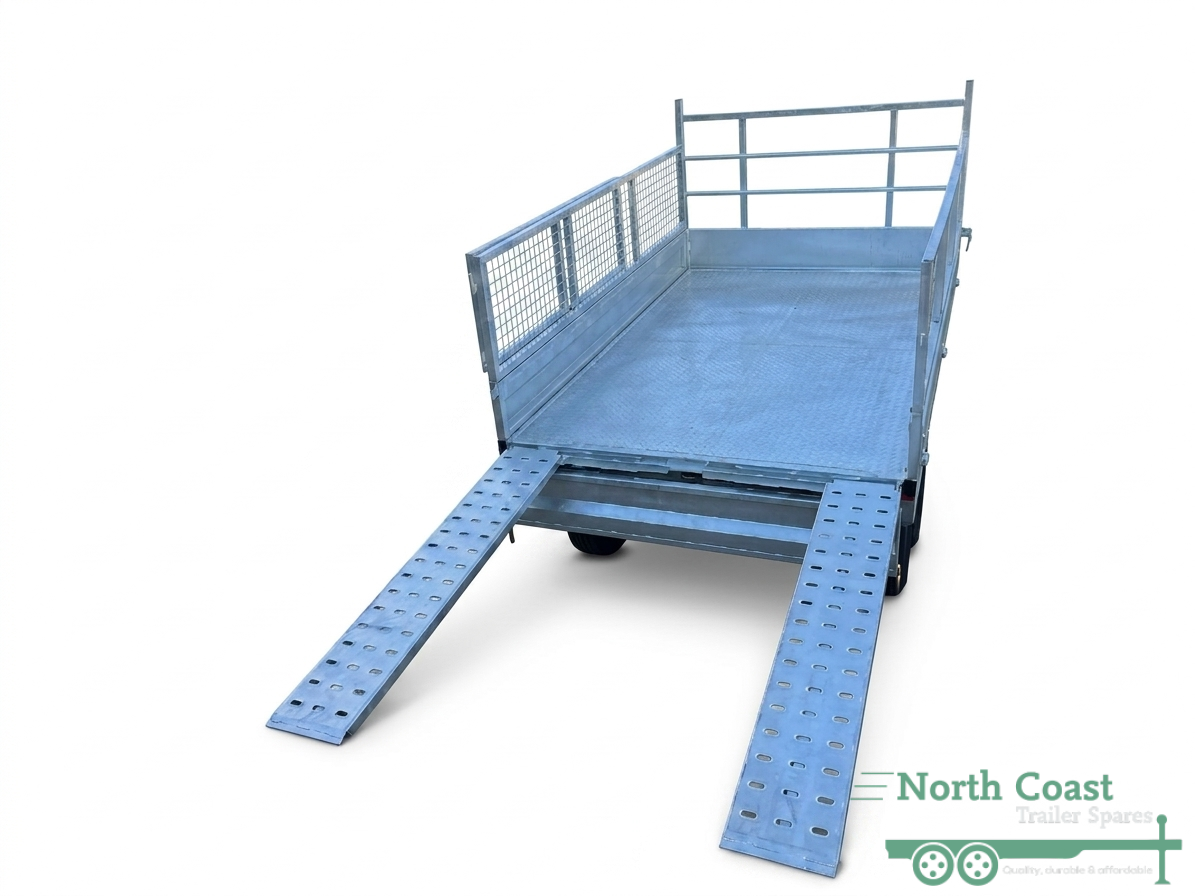

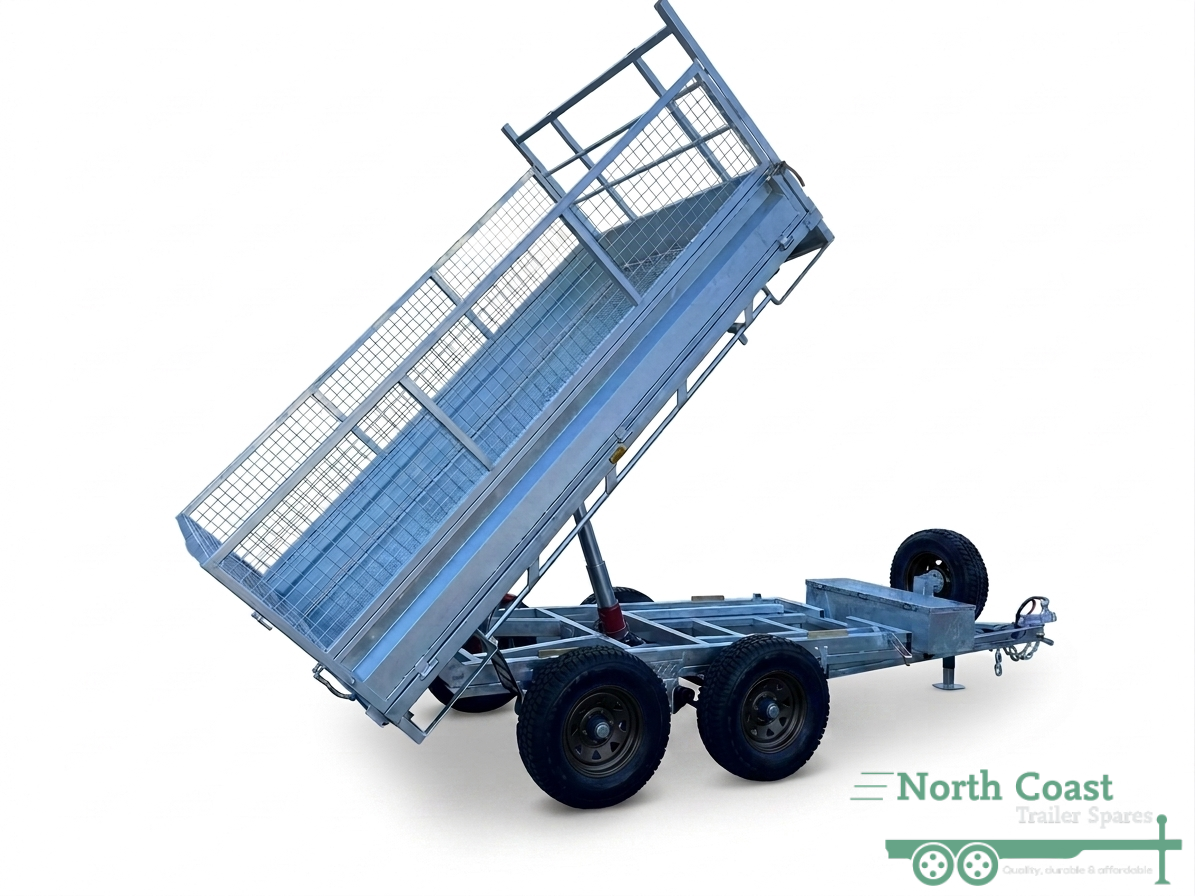

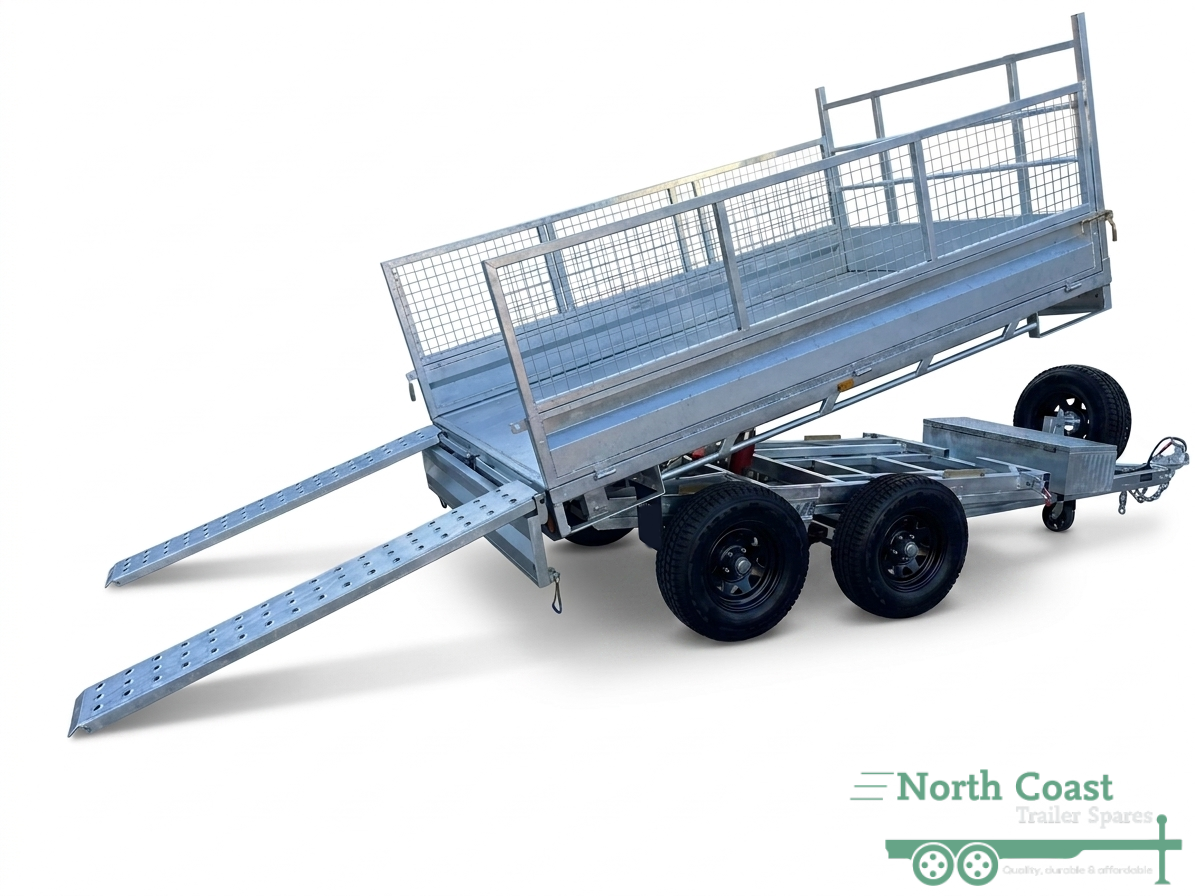

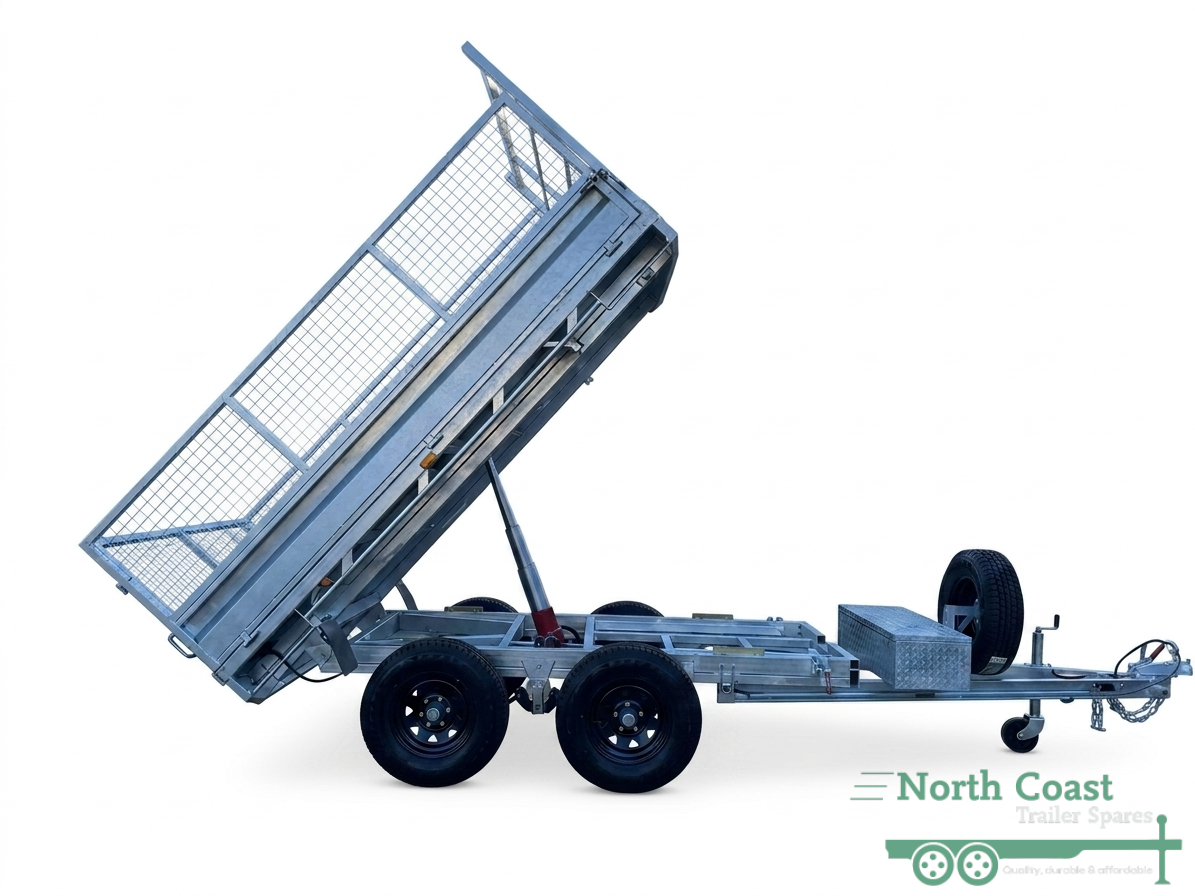

Tipping is fast and effortless thanks to a premium 4-stage hydraulic tipping ram boasting a 4,500kg lifting capacity. For machinery transport, two heavy-duty loading ramps are neatly housed underneath the rear of the trailer deck. These ramps can be positioned at any width along the rear bar, making it seamless to track-on everything from narrow ride-on mowers to wide skid steers.
Need a pure flat deck? The 300mm drop sides, rear gate, and 600mm mesh cage are entirely removable, leaving you with a completely clear, unrestricted flat deck workspace. Full-length tie-down rails flank both sides to keep your cargo securely strapped.
Flex-ATM Configuration (3.5T to 4.5T)
Built on a standard 4.5-tonne rated foundation, this trailer offers unique registration flexibility. Buy it today configured as a highly capable 3,500kg ATM trailer. If your fleet requirements grow, it can be upgraded to a 4,500kg ATM rating with an alternate tow hitch, updated plate specifications, and minor compliance adjustments.
10 x 6 ft extra heavy duty flat deck hydraulic tipping trailer atm 3.5t or 4.5t (available in either 3,500kg or 4,500kg atm) pricing for 3.5tonne
Outstanding new design for australian conditions with massive capacity built to register as 3.5 tonne or 4.5 tonne. extra-thick 4 mm checker plate floor. only changes to be made for 4.5 tonne rating is an alternate tow hitch, then plate specifications and other minor changes!!! this package includes removable 600 mm high heavy duty perimeter cage, loading ramps and swivel jockey stand. loading ramps housed underneath trailer back can be placed in any position along the rear of the trailer providing quick and easy loading of everything from a ride on mower, bobcat, tractor farm machinery and more. this trailer has been very well-engineered and fitted with 60 mm solid axles and 9 leaf roller rocker springs to withstand the toughest of loads and conditions the trailer floor has been upgraded to an extra heavy duty 4mm thick checker plate making it one of the toughest and most durable hydraulic tipping trailers available. great for farmers, tradesmen, machinery operators or anyone looking for a high-capacity versatile tipping flat deck trailer. hot dipped galvanized (atm 3500kg or 4500kg) 4mm thick checker plate floor 2200mm long drawbar solid 60mm axles rated at 3000kg each removable 300mm high sides and 600mm high cage 4 stage hydraulic tipping ram with 4500kg loading capacity 2 x heavy-duty loading ramps housed under trailer deck 15inch x 6 stud new sunraysia rims new 8 ply 235/75 r15 light truck tyres. (4500kg rated)Â
Technical Specifications
| Feature | Specification |
|---|---|
| Deck Dimensions | 10ft x 6ft (3000mm x 1800mm) |
| ATM Rating | 3,500kg (Upgradable to 4,500kg) |
| Floor Material | 4mm Extra Heavy-Duty Checker Plate |
| Chassis | Fully Welded & Massively Reinforced Underfloor Beams |
| Finish | Hot-Dipped Galvanized |
| Drawbar | 2200mm Extended Drawbar |
| Axles | Dual Solid 60mm Axles (Rated at 3,000kg each) |

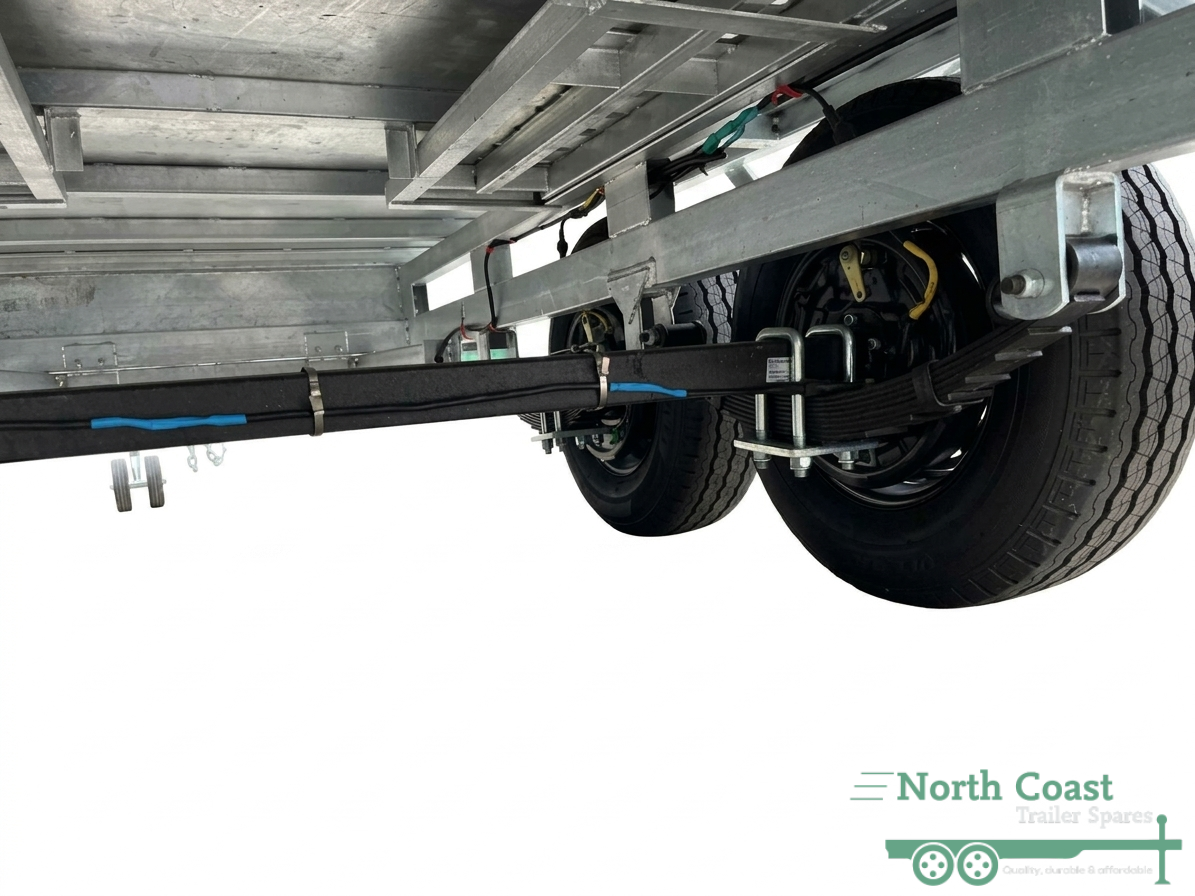

| Suspension | 9-Leaf Heavy-Duty Roller Rocker System (4,500kg rated) |
| Brakes | 4-Wheel 12″ Electric Brakes with Emergency Break-a-way |
| Hydraulic Ram | 4-Stage Tipping Ram (4,500kg Capacity) |
| Sides & Cage | 300mm Removable Drop Sides + 600mm Removable Perimeter Cage |
| Tie-Downs | Full-Length Side Tie-Down Rails |
| Wheels & Tyres | 15″ 6-Stud Sunraysia Rims, New 8-Ply 235/75 R15 Light Truck Tyres |
| Jockey Stand | 7,000lb Heavy-Duty Swivel Jockey Stand |
| Lighting | Multi-volt 10/30V LED Tail & Side Marker Lights |
| Compliance | Built to ADR Standards with Heavy-Duty Chain & Load-Rated Shackles |
| Plug Type | Flat 7-Pin |
