Description

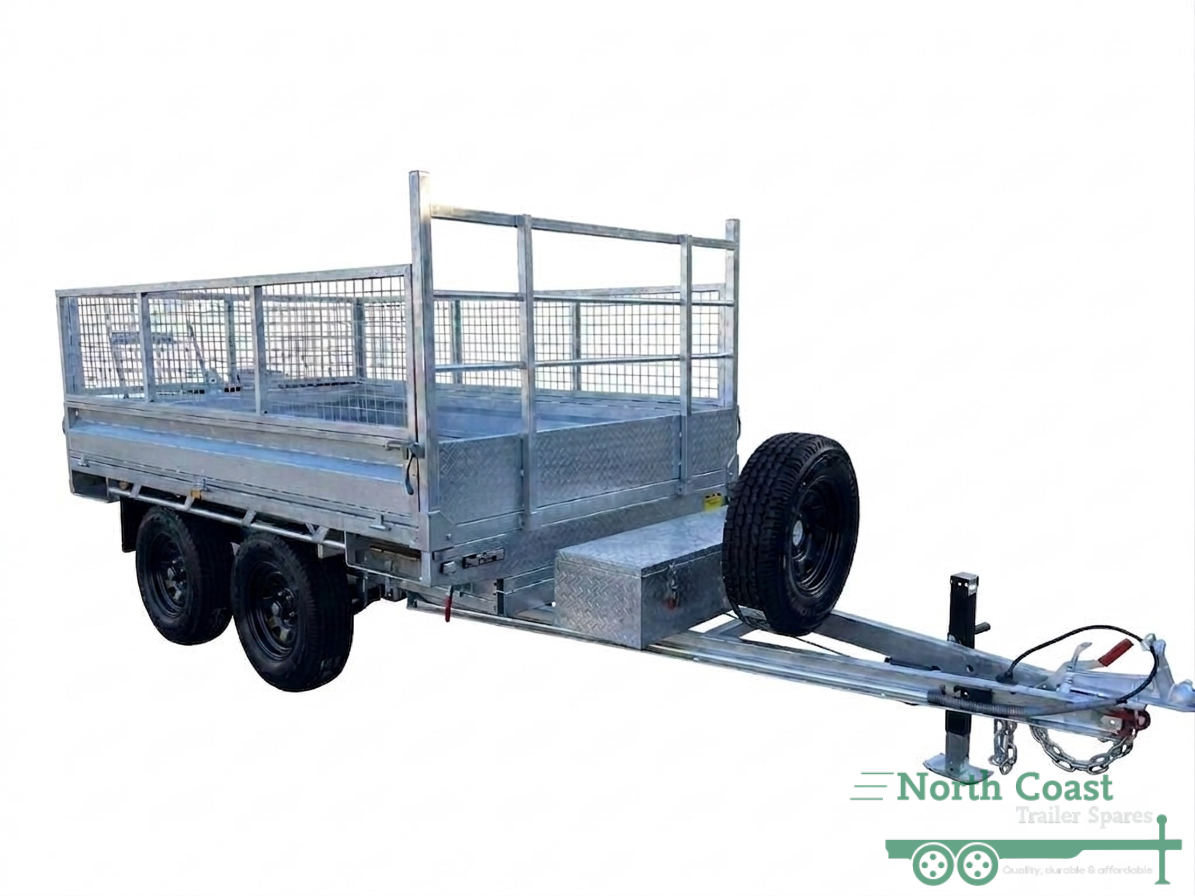

10×7 Heavy-Duty Flat Deck Hydraulic Tipper Trailer (3.5T / 4.5T ATM)
The ultimate heavy-duty workhorse engineered specifically for harsh Australian conditions, now featuring an extra-wide 10×7 ft footprint. Boasting a massive 4-stage hydraulic ram, an upgraded 4mm extra-thick checker plate floor, and a versatile flat deck design with fully removable sides, this trailer is built for farmers, tradesmen, and heavy machinery operators who demand uncompromising durability and maximum deck area.
Available to register in either 3,500kg or 4,500kg ATM configurations. This complete turnkey package includes a 600mm perimeter mesh cage, heavy-duty rear-slotted loading ramps, and a premium 7,000lb swivel jockey stand.
Product Features
- Ultimate Loading & Tipping Versatility

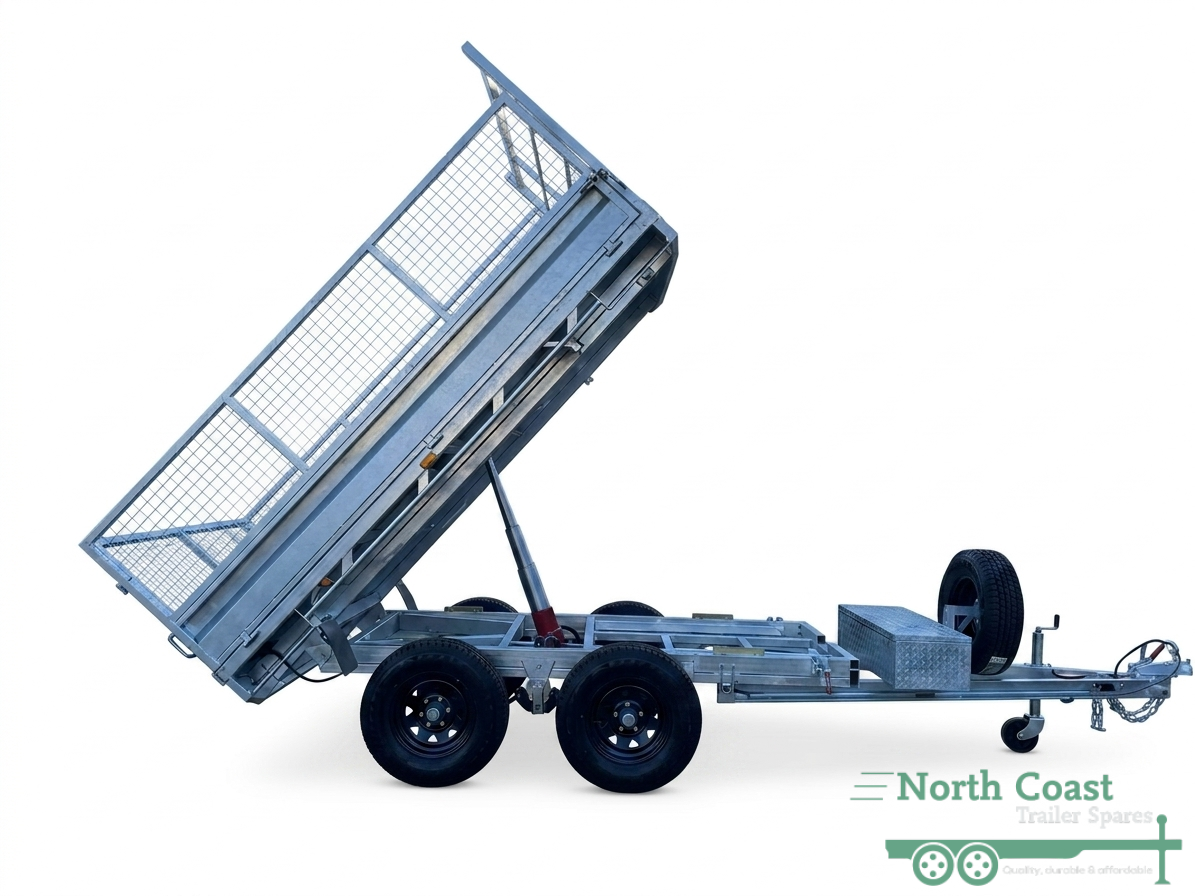

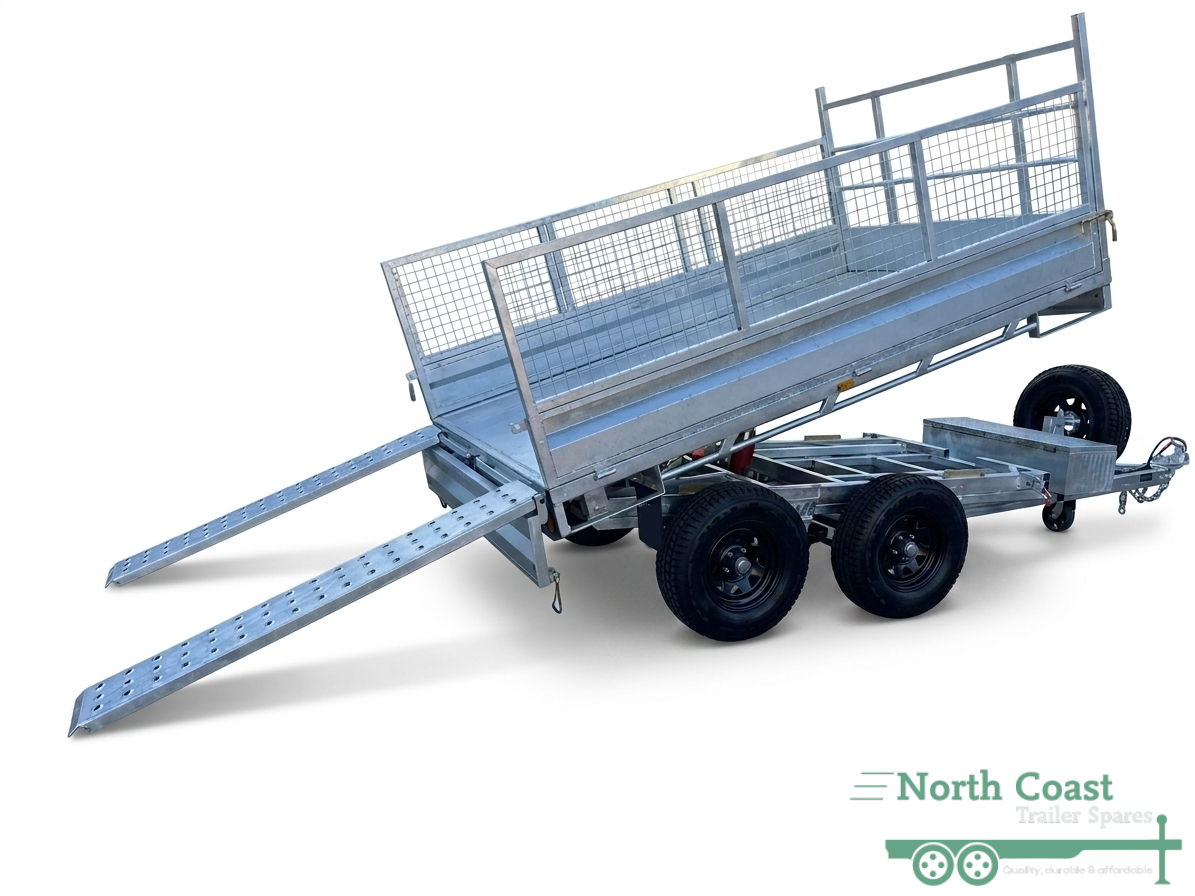

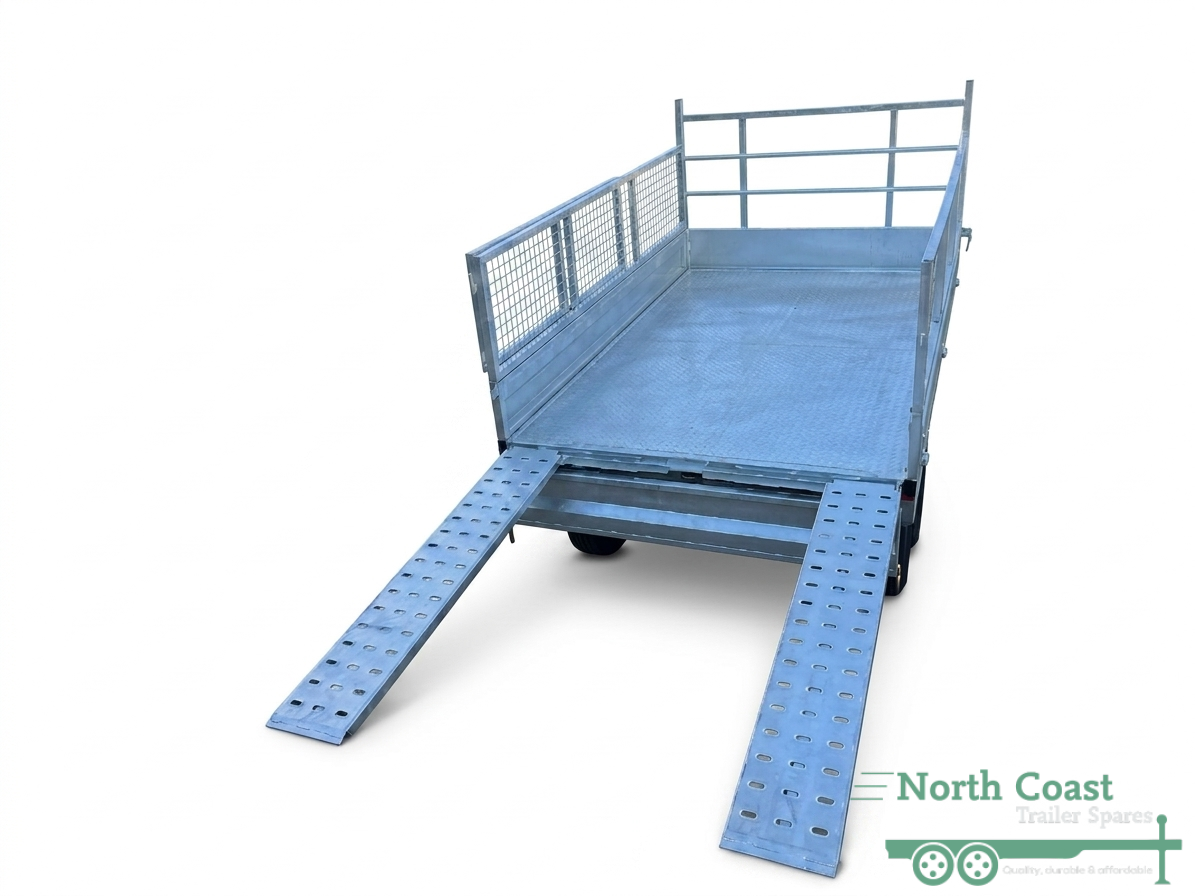

Tipping is fast, safe, and effortless thanks to a premium 4-stage hydraulic tipping ram boasting a 4,500kg lifting capacity. For machinery transport, two heavy-duty loading ramps are neatly housed underneath the rear of the trailer deck. These ramps can be positioned at any width along the rear bar, making it seamless to track-on everything from narrow ride-on mowers to wide skid steers and mini excavators. - Convert to a Pure Flat Top in Minutes
Need a completely open workspace? The 300mm drop sides, rear gate, and 600mm mesh cage are entirely removable, leaving you with an unrestricted, extra-wide 10×7 ft flat top deck. Full-length tie-down rails flank both sides to keep your pallets, machinery, or building materials securely strapped. - Flex-ATM Configuration (3.5T to 4.5T)
Built on a standard 4.5-tonne rated foundation, this trailer offers unique registration flexibility. Buy it today configured as a highly capable 3,500kg ATM trailer to suit standard towing setups. If your fleet requirements or vehicle capacities grow, it can be easily upgraded to a 4,500kg ATM rating with an alternate tow hitch, updated plate specifications, and minor compliance adjustments. - Over-Engineered Mechanical Foundation
To withstand the toughest Aussie loads and corrugated roads, this trailer is fitted with dual 60mm solid axles (rated at 3,000kg each) and a premium 9-leaf roller rocker suspension system. The floor has been upgraded to a 4mm thick checker plate, making it one of the toughest and most warp-resistant hydraulic tipping decks on the market.
Technical Specifications
| Feature | Specification |
|---|---|
| Deck Dimensions | 10 ft x 7 ft (Extra-wide flat top footprint) |
| ATM Rating | Flex-ATM: 3,500kg or 4,500kg configuration options |
| Chassis Finish | Premium Hot-Dipped Galvanized (Rust & corrosion protection) |
| Floor Type | Upgraded 4mm Heavy-Duty Steel Checker Plate |
| Hydraulic System | 4-Stage Hydraulic Tipping Ram with 4,500kg lifting capacity |
| Axles | Dual Solid 60mm Axles (Rated at 3,000kg each) |
| Suspension | Heavy-Duty 9-Leaf Roller Rocker Springs |
| Drawbar | 2200mm Extended Drawbar for effortless reversing and tight turning |
| Wheels & Rims | 15-inch 6-Stud Heavy-Duty Sunraysia Rims |
| Tyres | New 8-Ply 235/75 R15 Light Truck Tyres (4,500kg rated bundle) |
| Tie-Down System | Full-Length Heavy-Duty Tie-Down Rails on both sides |
What’s Included in This Package?
- 600mm Heavy-Duty Mesh Perimeter Cage (Fully removable)
- 300mm High Steel Drop Sides & Tailgate (Fully removable)
- 2 x Heavy-Duty Loading Ramps (Securely housed under the rear deck)
- 7,000lb Heavy-Duty Swivel Jockey Stand
- 12V Deep Cycle Battery & Hydraulic Pump Assembly (Housed in a secure, lockable toolbox)
Proudly Serving the Northern Rivers: This trailer is available now for immediate pickup or viewing at our Alstonville yard. Located centrally in the Northern Rivers region, we make it easy for local farmers, builders, and operators from Lismore, Ballina, Byron Bay, and surrounding areas to inspect our heavy-duty fleet in person.
