Description

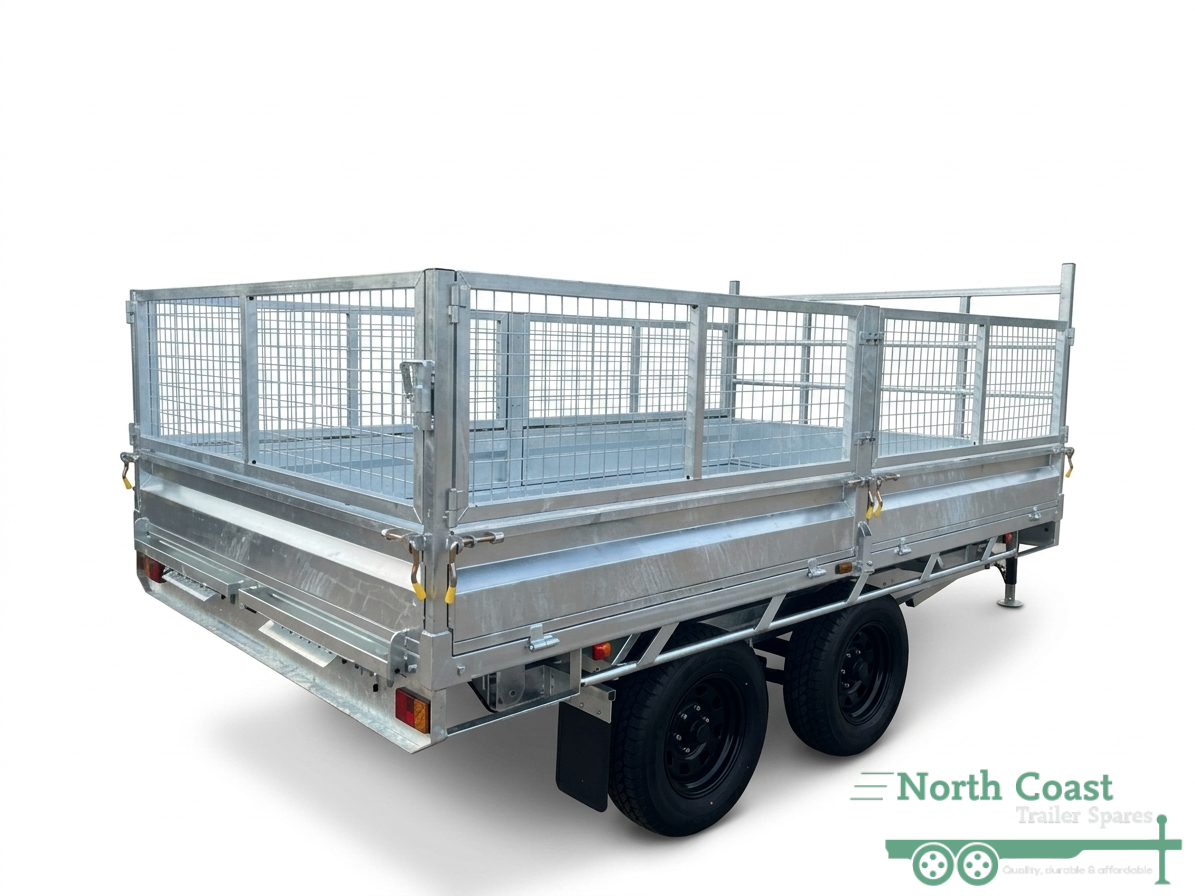

12 x 7 ft Flat Deck Hydraulic Tipping Trailer ATM 3.5 tonne
Tare:1200Kg
Upgradeable to 4.5tonne
The Powerhouse Tipper
: Built for the Toughest JobsÂ
 Industrial Strength. Unmatched Versatility.
 With a massive 3500kg tipping capacity and a fully reinforced chassis, this isn’t just a trailer—it’s a workhorse designed to outperform and outlast everything else on the road.
 With a massive 3500kg tipping capacity and a fully reinforced chassis, this isn’t just a trailer—it’s a workhorse designed to outperform and outlast everything else on the road.
Key Performance Highlights
- Massive Payload:Â Choose between 3500kg or 4500kg ATM to suit your heavy-hauling needs.
- Superior Tipping Power:Â Driven by a high-performance 4-stage hydraulic ram.
- Heavy-Duty Foundation:Â Solid 60mm axles and 9-leaf rocker roller suspension for maximum stability.
- Unrivalled Floor Strength:Â A 4mm thick checker plate floor, massively reinforced with extra under-floor beams.
Full Specifications
| Feature | Specification |
|---|---|

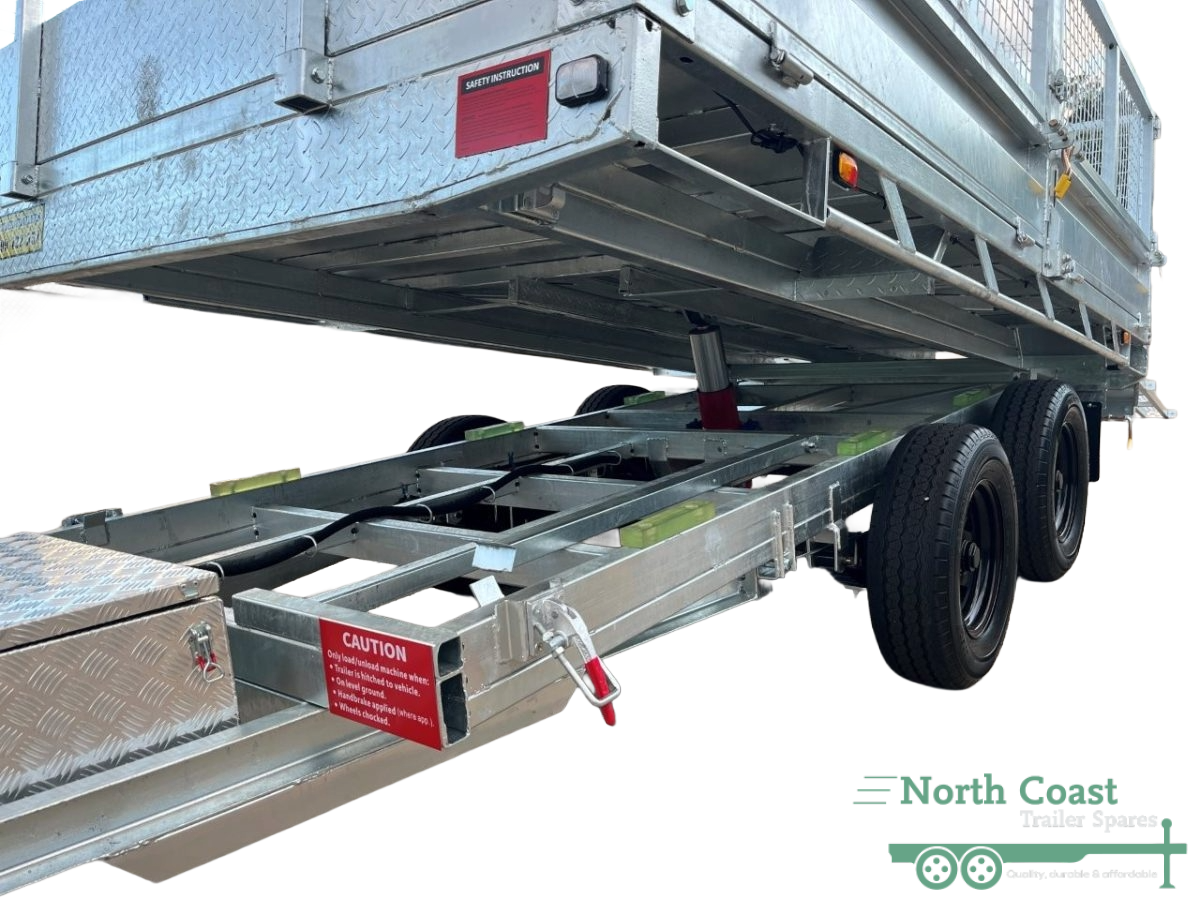

| Chassis & Build | Fully Welded Heavy-Duty Chassis; Hot Dipped Galvanised |

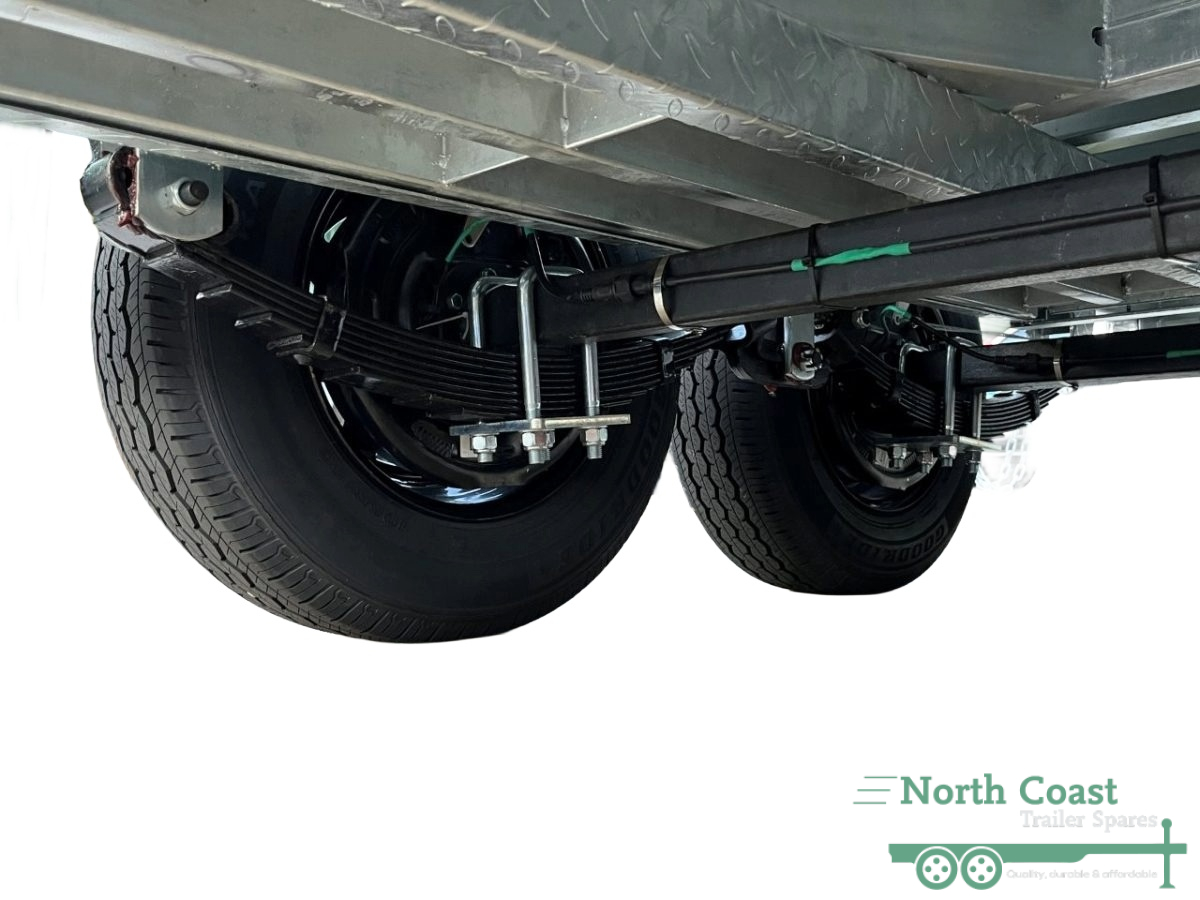

| Axles & Suspension | Solid 60mm Axles (3000kg each); 9 Leaf Rocker Roller Springs |
| Braking System | 4-Wheel 12″ Electric Brakes with Emergency Break-away |

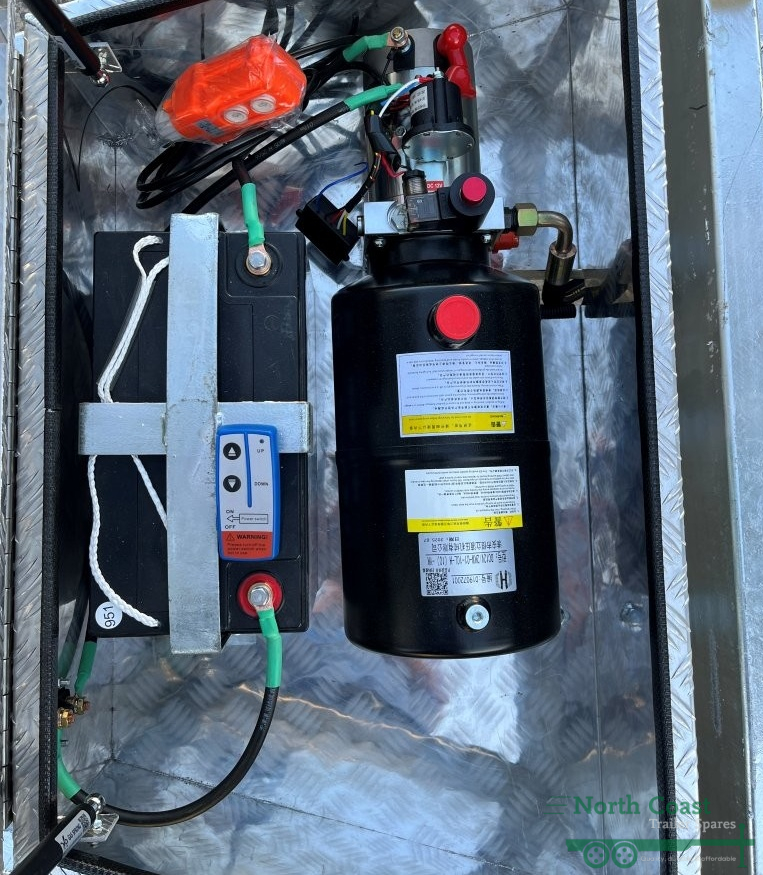

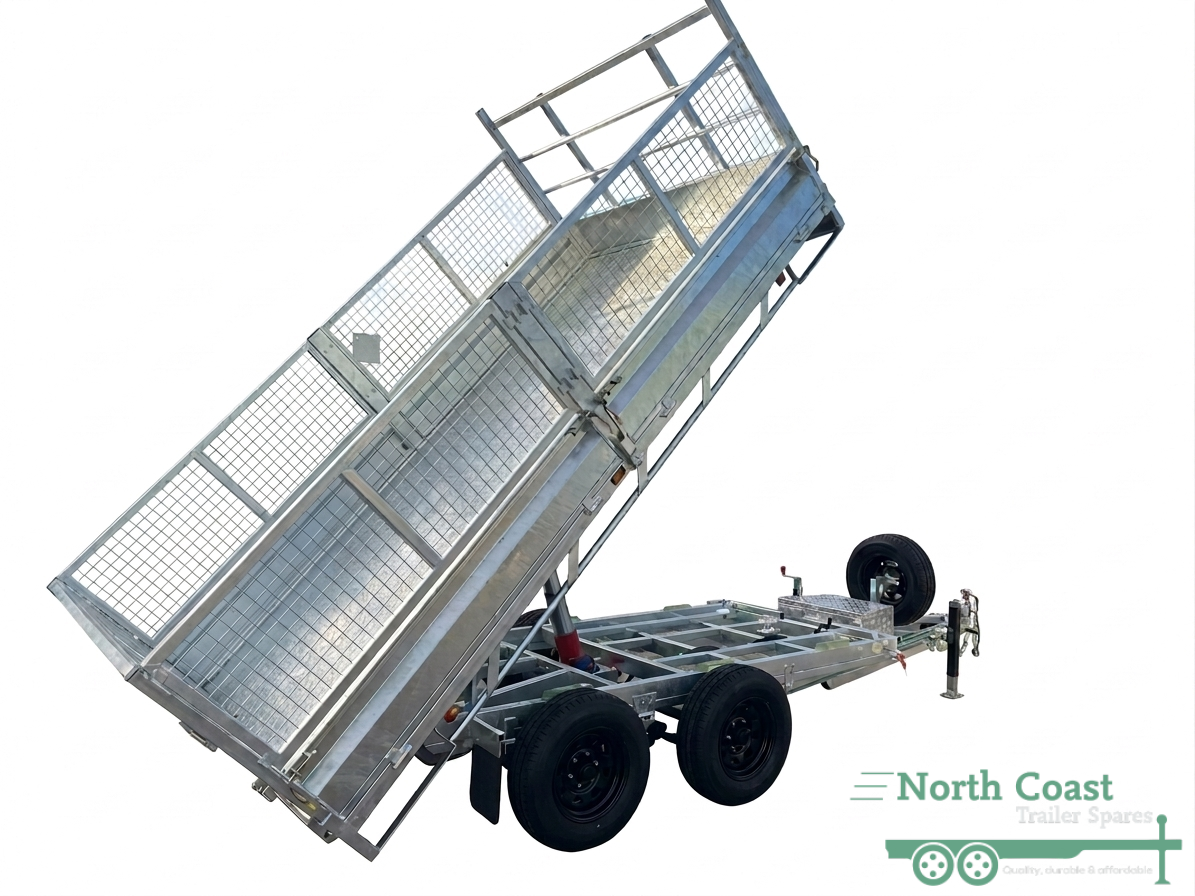

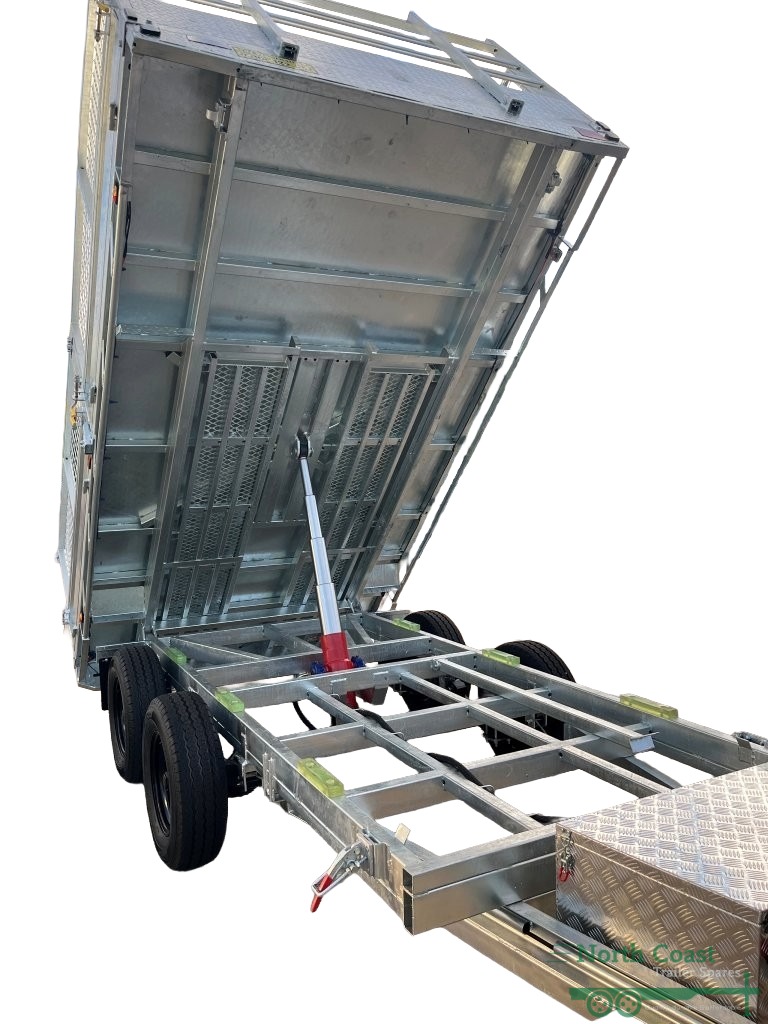

| Tipping System | 4 Stage Hydraulic Ram (4500kg Loading Capacity) |
| Floor & Sides | 4mm Thick Checker Plate; 300mm Removable Sides + 600mm Cage |
| Tyres & Rims | 235/75 R15 8-Ply Light Truck Tyres; 6-Stud Sunraysia Rims |

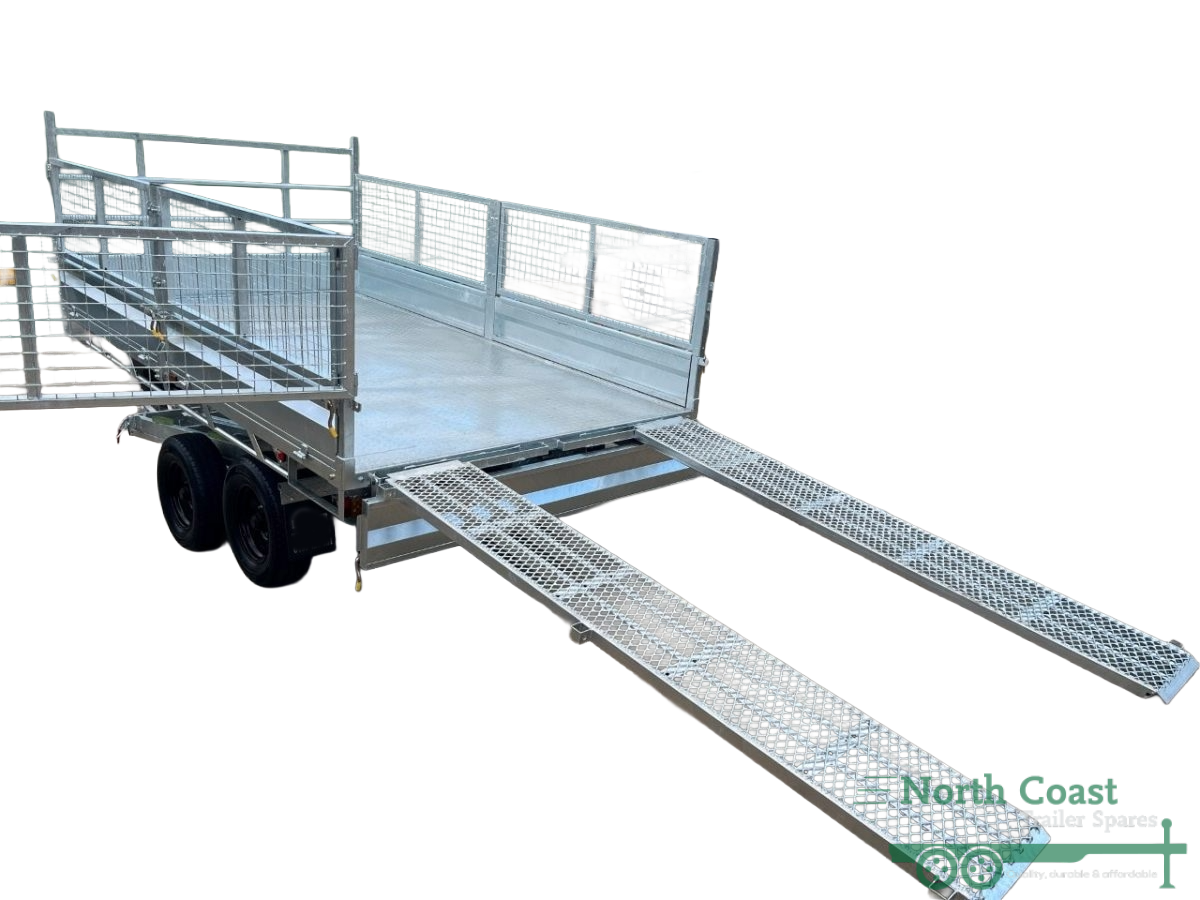

| Loading | 2 x Extra-long Heavy-Duty Ramps (Stored under deck) |

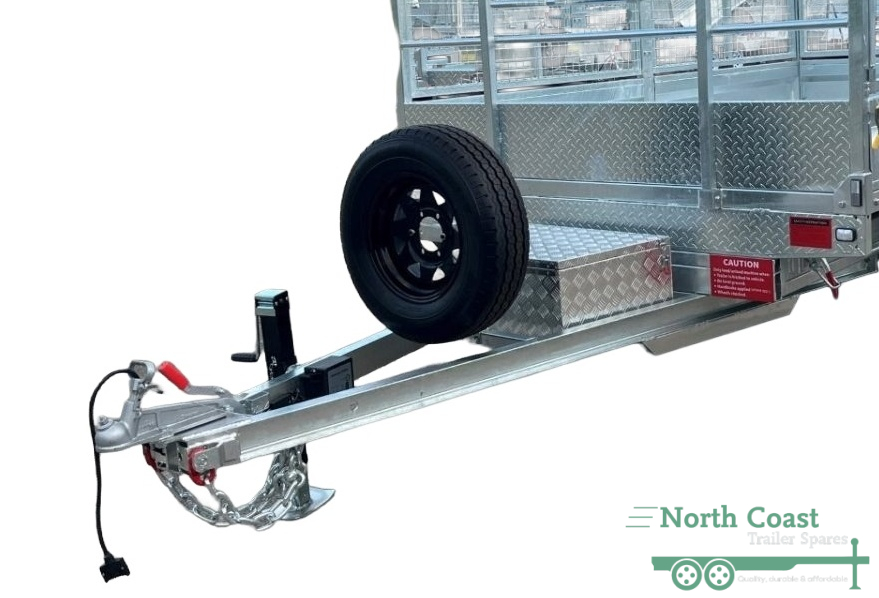

| Dimensions | 1900mm Long Drawbar for easier reversing and stability |
| Electrical | Multi-volt 10/30v LED Lights; Flat 7-Pin Plug |
| Accessories | 7000lb Swivel Jockey Stand; Tie-down Rails; Load Rated Shackles |
 Why This Trailer?
- Maximum Protection:Â Hot-dipped galvanising ensures your investment is protected against rust and corrosion for years.
- Versatile Design:Â Completely removable sides, rear gate, and cage allow you to switch from a high-volume bin to a flatbed in minutes.
- Safety First:Â Meets all ADR standards with heavy-duty chains and load-rated shackles for legal, secure transport.
If by chance there is a problem we are here !!, We have a fully equiped workshop and spare parts shop to fix it.
