Description
This flat deck machinery trailer features dual solid 60mm structural steel axles (3,000kg rating each), 9-leaf roller rocker springs, a 4mm thick steel checker plate floor, and a hot-dipped galvanized finish for rust protection.
Powered by a 5-stage underbody hydraulic ram (5,000kg capacity) and equipped with slide-out ramps, it accommodates:
-
- Bobcats and mini excavators
- Agricultural implements and tractors
- Commercial mowers and palletized freight
The 1200mm headboard, 300mm drop sides, and 600mm cage are fully removable for quick conversion to an open flatbed. Full-length tie-down rails offer secure anchor points.
4. Technical Specifications Summary
-
- Dimensions & Capacity: 14ft x 7ft layout; 3,500kg or 4,500kg ATM rating.
- Build & Frame: 4,500kg spec sub-frame, 4mm checker plate floor, and heavy-gauge C-section drawbar.
- Axles & Suspension: Dual solid 60mm axles with 9-leaf roller rocker springs.
- Brakes & Hydraulics: 12-inch electric brakes and 5-stage tipping ram.
- Access & Accessories: Punched steel loading ramps, removable gates/cage, 15-inch Sunraysia rims, and LED lighting
Technical Specifications
| Feature | Specification Details |
|---|---|
| Trailer Dimensions | 14ft x 7ft (Flat Deck) |
| ATM Capacity | 3,500kg or 4,500kg (Chassis built to 4,500kg spec) |
| Finish | Premium Hot-Dipped Galvanized (Rust Resistant) |

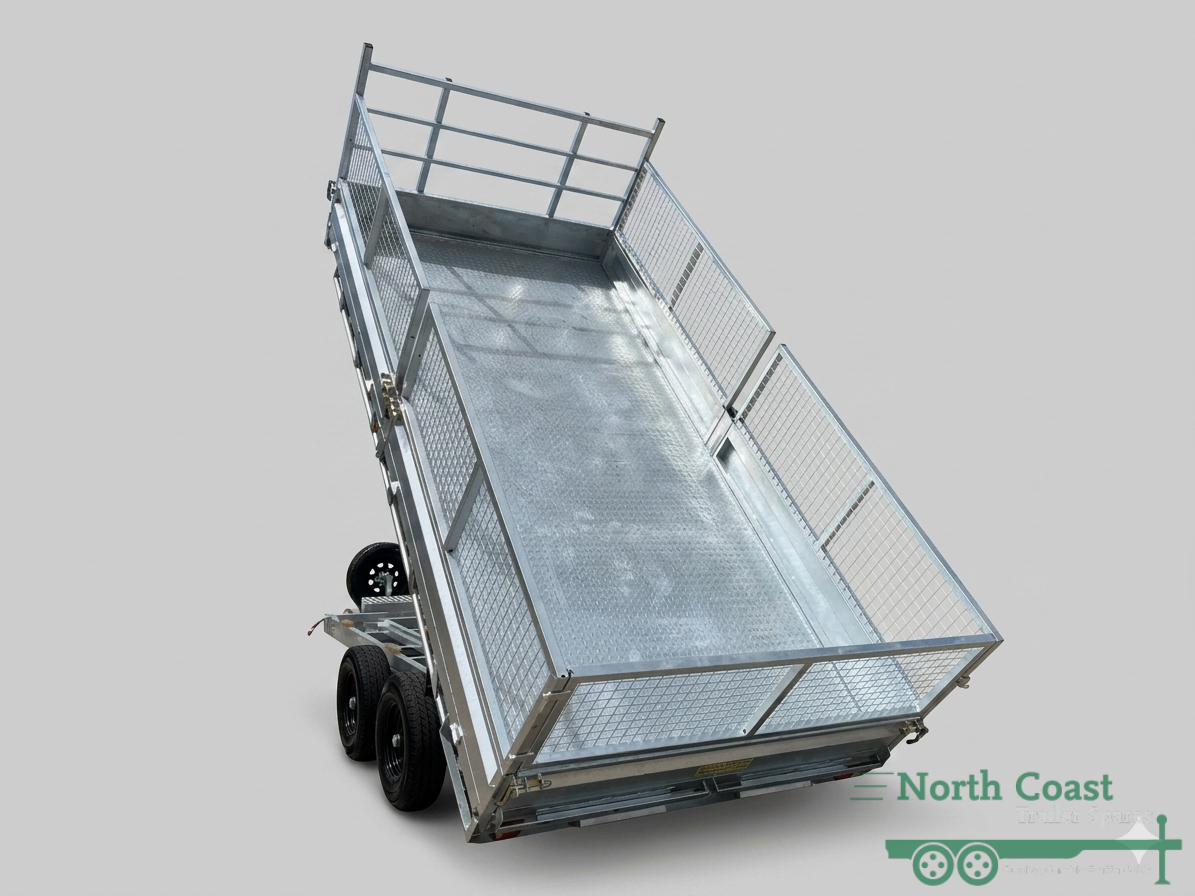

| Floor Construction | Upgraded Extra Heavy-Duty 4mm Checker Plate |
| Drawbar | 1950mm C-section Drawbar with strengthening RHS underneath |
| Axles | Solid 60mm Axles (Rated at 3,000kg each) |
| Suspension | 9-Leaf Load Sharing Greaseable Roller Rocker Springs (4,500kg rated) |
| Brakes | 4-Wheel 12-inch Electric Brakes with Emergency Break-a-way system |

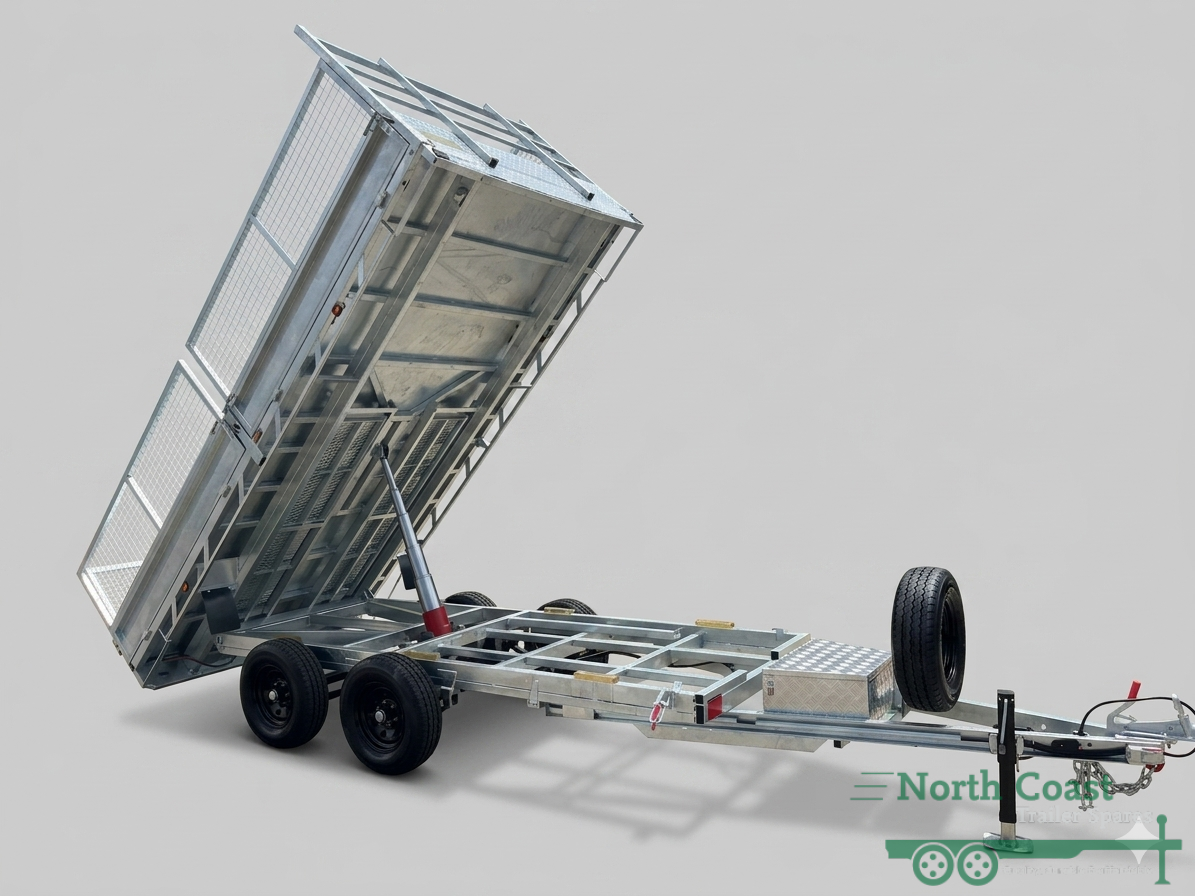

| Hydraulics | 5-Stage Tipping Ram with 5,000kg Loading Capacity |

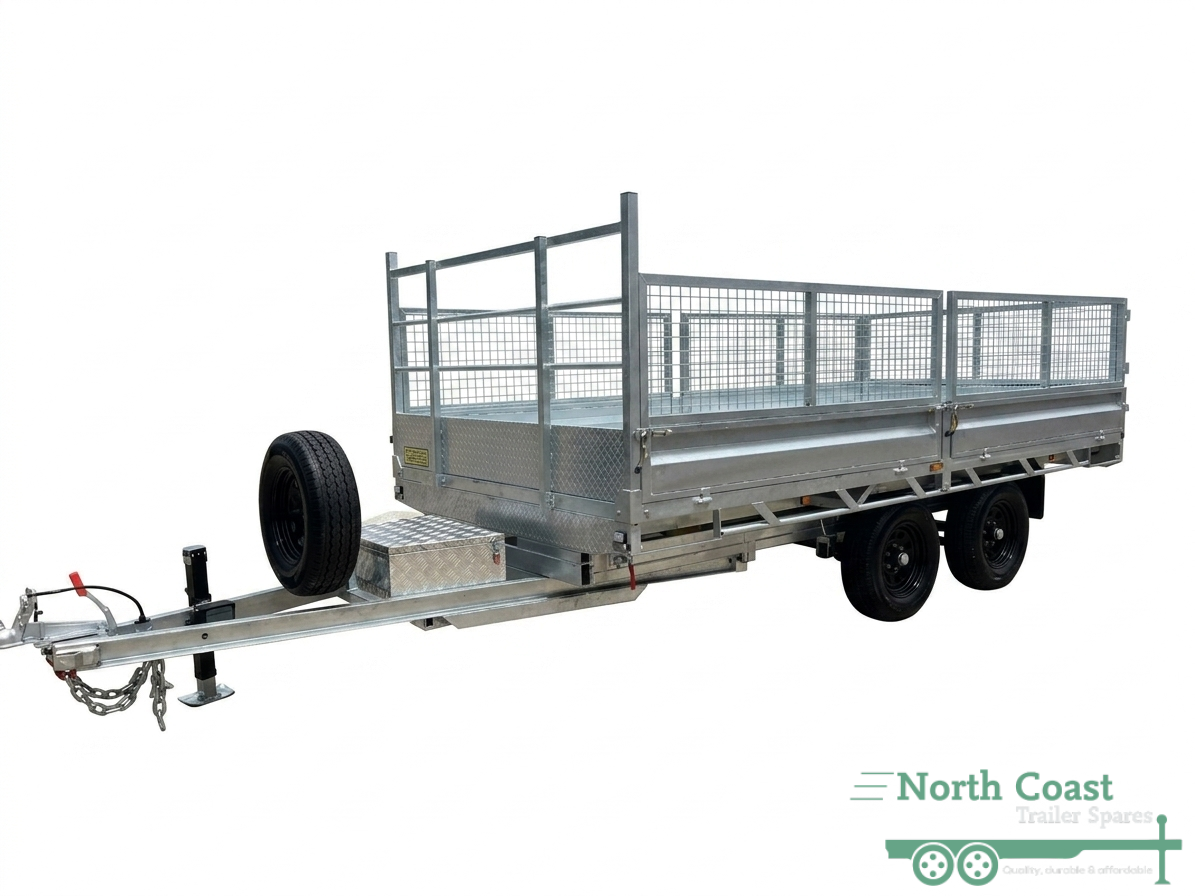

| Sides & Cage | 1200mm Removable Headboard / 300mm Drop Sides / 600mm Heavy Duty Cage |

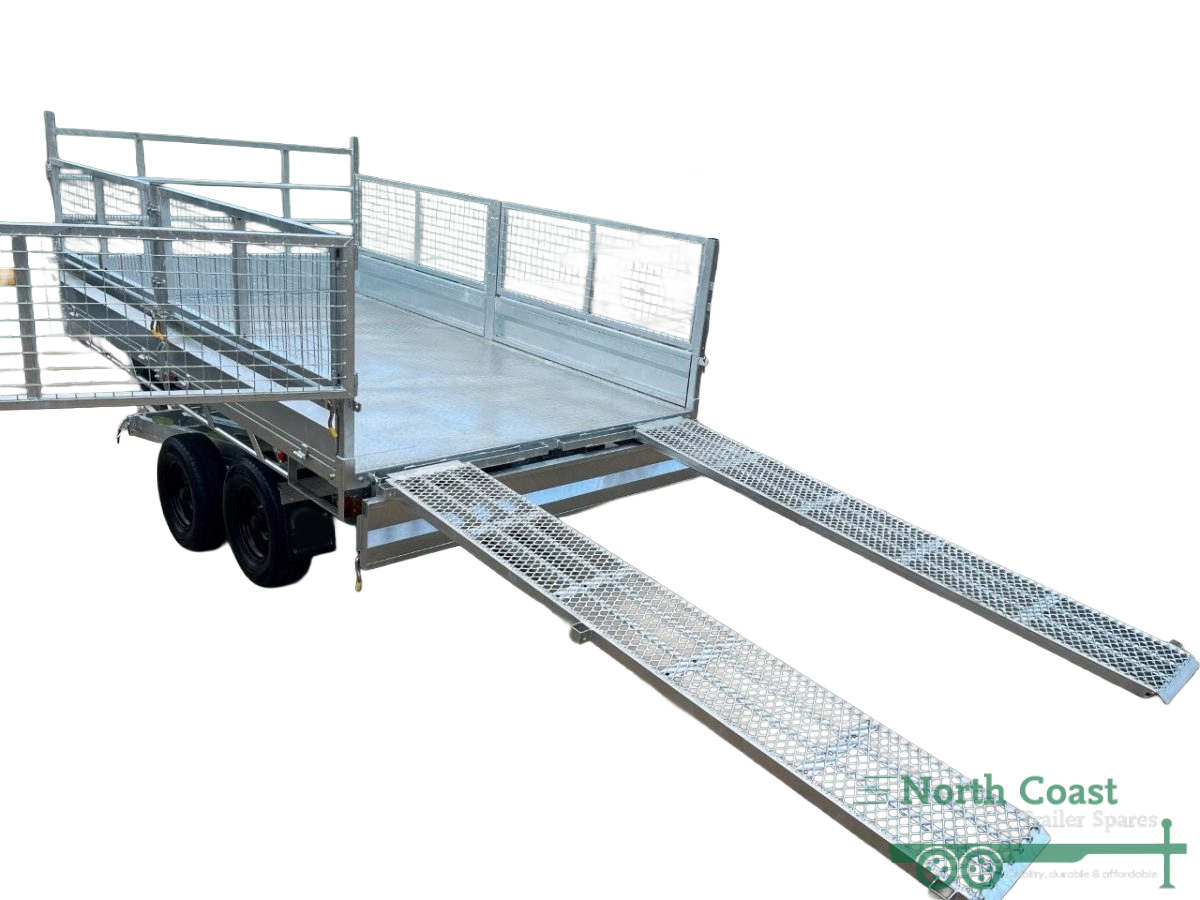

| Ramps | 2 x Heavy-Duty Slide-Out Loading Ramps (Housed under deck) |
| Wheels & Tyres | 15-inch x 6-stud Sunraysia Rims with New 8-ply 225/70 R15 Light Truck Tyres |
| Jockey Wheel | 7,000lb Heavy-Duty Swing-Up Jockey Stand |
| Lighting & Electrical | Multi-volt 10-30v LED Tail & Marker Lights with Flat 7-Pin Plug |
| Safety Compliance | ADR Standard Heavy-Duty Chains, 3-ton Hammer Locks & Rated Shackles |
Available for viewing and pickup at our Alstonville showroom. North Coast Trailer Spares proudly supplies premium, over-engineered trailers to farmers, tradesmen, and machinery operators across Ballina, Lismore, Byron Bay, and the greater Northern Rivers region.
Skip the long wait times and high interstate freight costs—buy local and get a trailer engineered specifically to withstand our tough coastal environments and demanding regional terrain.
