## Heavy-Duty Multi-Vehicle Hauling, Redefined
Take your transport capabilities to the next level with our premium 8x5ft Tilting Motorbike, ATV, and Flat Deck Trailer. This model features a sleek, factory-upgraded matte black steel wheel finish that provides a rugged, modern appearance while easily hiding brake dust and road grime.
Engineered for effortless loading, the trailer utilizes a heavy-duty integrated tilting mechanism paired with a full-width drop-down loading ramp. It is the safest, most efficient way to load and transport up to three full-sized motorbikes, quad bikes, zero-turn mowers, or heavy commercial machinery.
### Engineered for Australian Conditions
Don’t settle for bolt-together alternatives. This trailer is constructed using a heavy-duty 100mm x 50mm drawbar, a solid 50mm axle, and a 2.5mm thick commercial checker plate floor. The entire frame is fully welded before undergoing a complete hot-dipped galvanization process, sealing the steel inside and out against corrosion, rust, and harsh road debris.
### Complete Cargo Versatility & Secure Tie-Downs
Whether you are hitting the tracks or hauling material to a job site, securing your load is effortless. The deck comes pre-equipped with 10 extra heavy-duty hinge-up tie-down rings (4 along each side and 2 positioned at the front).
* Multi-Vehicle Deck: Easily transitions between a completely clear flat deck, a 1-to-3 motorcycle carrier, or a wide quad/ATV transport setup.
* Future-Proof Suspension: Rated at 750kg ATM for immediate use, but pre-installed with heavy-duty 8-leaf eye-to-eye suspension springs, allowing you to easily upgrade its structural capacity to 1400kg or 1500kg ATM down the road.

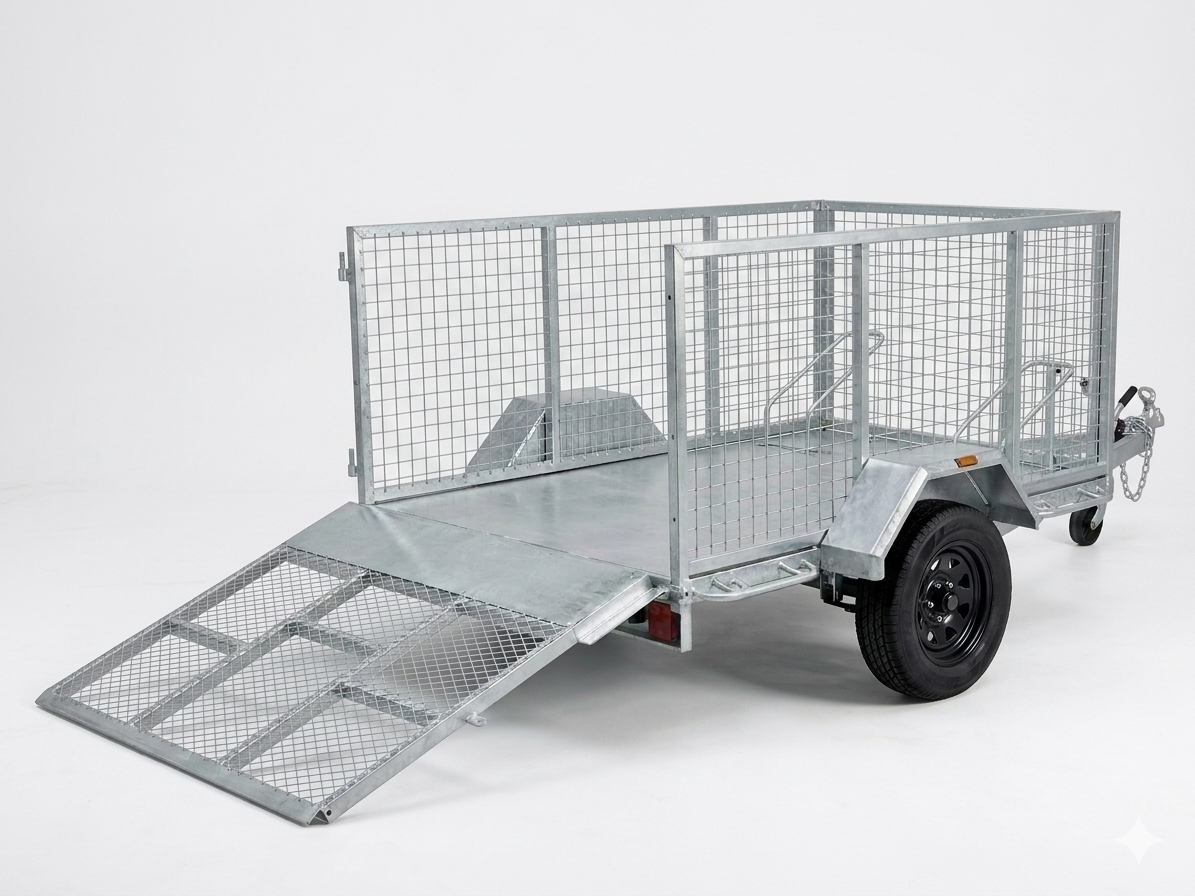

* Optional 900mm Perimeter Cage Available: If you need to haul green waste, camping gear, or building materials, our optional quick-removal mesh cage instantly transforms this vehicle hauler into a high-volume utility box trailer.
—
## Technical Specifications
* ATM (Aggregate Trailer Mass): 750kg (Upgradable to 1400kg / 1500kg ATM)
* Tare Weight: 370kg | Payload Capacity: 380kg (At 750kg ATM)
* Deck Dimensions: 2530mm x 1630mm (8 x 5 ft)
* Internal Dimensions (With Optional Cage): 2430mm x 1540mm
* Drawbar: 100mm x 50mm heavy-duty steel | Length: 1650mm
* Axle & Bearings: Solid 50mm axle fitted with premium Japanese Ford Slimline Bearings
* Suspension: Heavy-duty Eye-to-Eye 8-Leaf Suspension Springs (Rated for 1500kg capacity)
* Wheels & Tyres: 14-inch x 5-stud Sunraysia rims with upgraded matte black styling, wrapped in brand-new 185 R14 Light Truck Tyres
* Lighting: Premium 10/30V Multi-volt waterproof LED trailer lights
* Included Accessories: 6-inch swing-up jockey wheel, safety chains, and compliance plate.
### Local Pickup & Service Area
North Coast Trailer Spares is located at Unit 1, 20 Kay’s Lane in the Russellton Industrial Estate, Alstonville. We are proud to serve tradesmen, riders, and farmers across Alstonville, Lismore, Ballina, Byron Bay, and the greater Northern Rivers region.
Drop by our showroom to inspect our unmatched build quality in person, or contact our team today for a custom quote or to discuss our flexible finance options.
